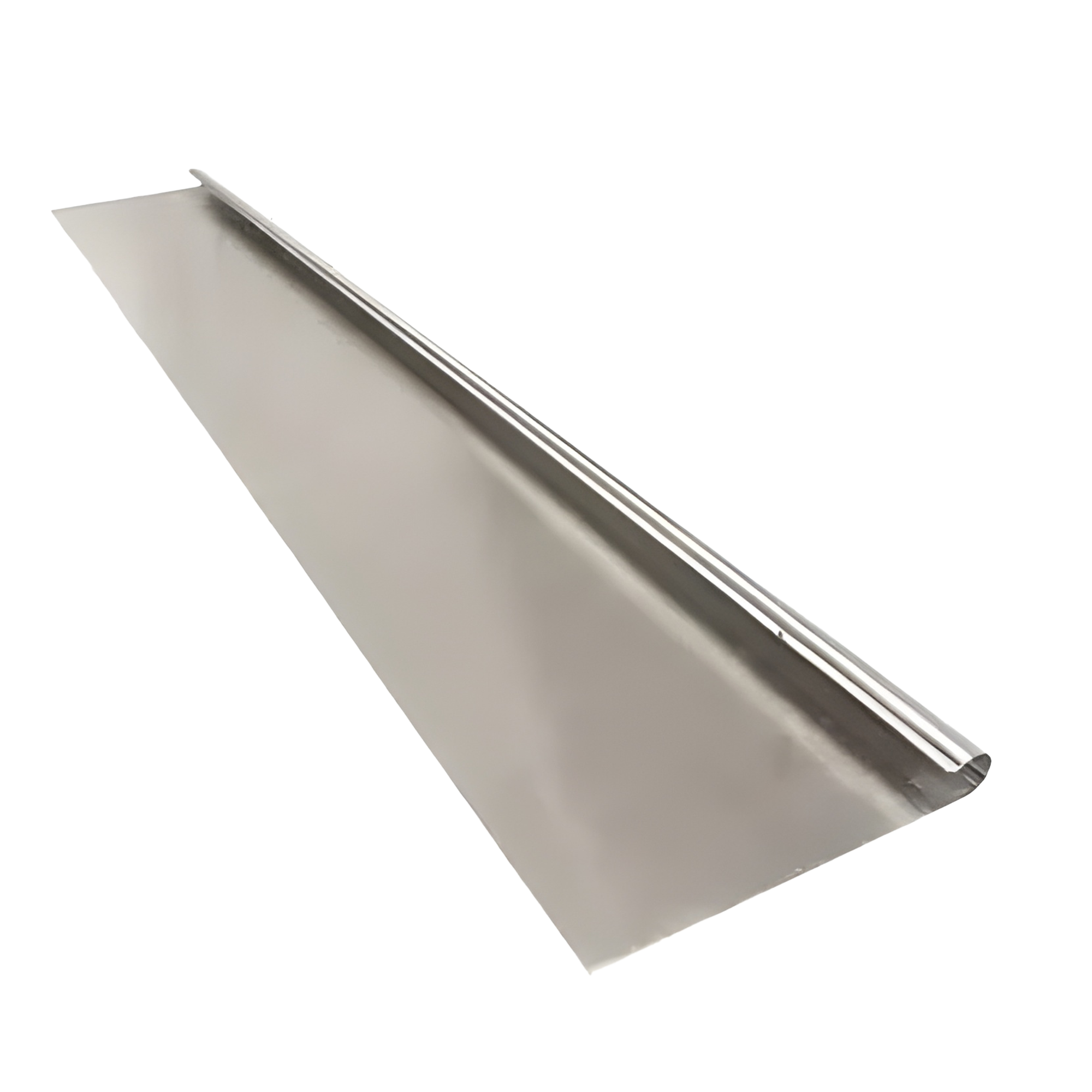

ProWarm™ Aluminium Fit From Below J Spreader Plate

The ProWarm™ Aluminium Fit From Below J Spreader Plate provides a convenient and efficient solution for underfloor heating installations, eliminating the need to lift floorboards. With a width of 100mm and single-channel grooves, these plates fit seamlessly from below, ensuring the same excellent heat outputs as traditional heat plates.

Features & Benefits:

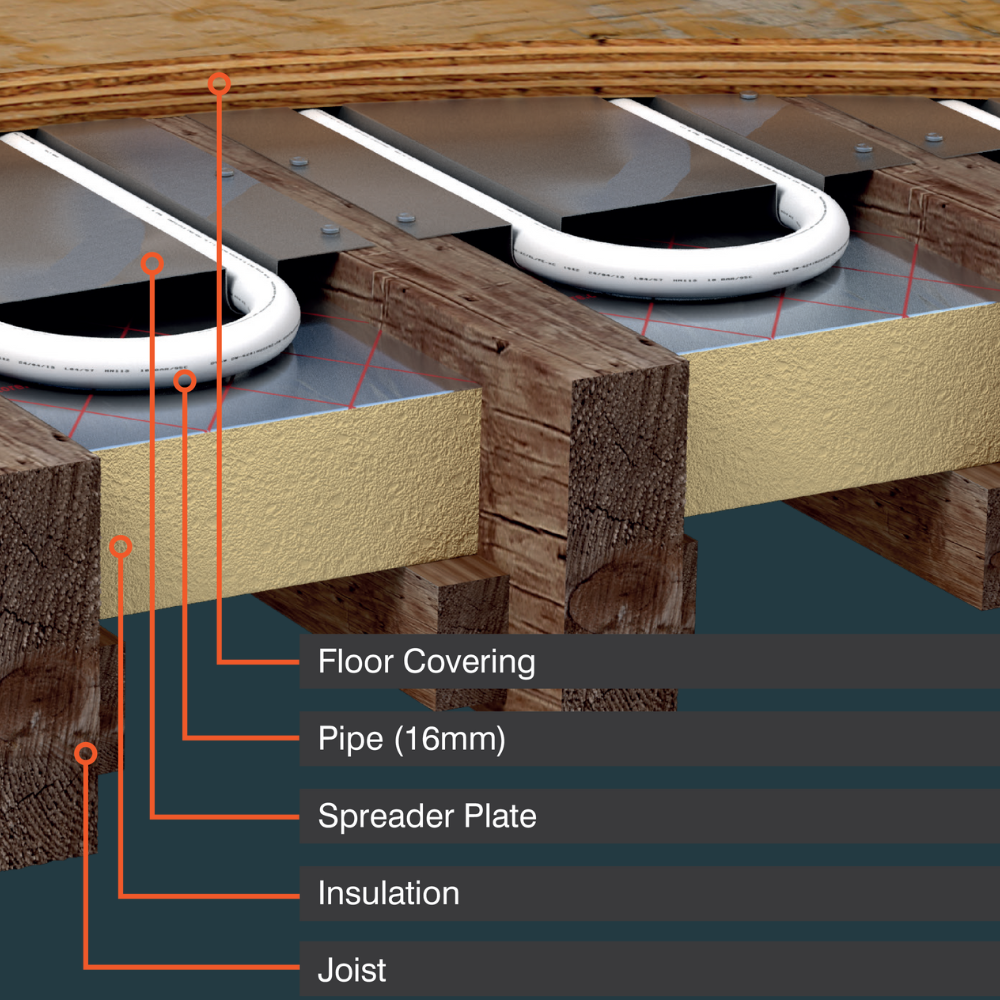

• Easy Installation: Designed for installation within timber joists, allowing for a straightforward setup without disrupting existing floor structures.
• Versatile Fit: Accommodates various centre joist spacings, making it adaptable to different installation configurations.
• Enhanced Heat Distribution: The integrated insulation barrier effectively directs heat upwards, maximising efficiency and comfort.
• High Output: Delivers a typical output of up to 81W/m², ensuring efficient and reliable heating performance.
• Precision Fit: Plates are available in a standard size of 1000mm x 100mm, specifically designed for use with 16mm pipe.

The ProWarm™ Aluminium Fit From Below J Spreader Plate is the ideal choice for efficient and effective underfloor heating, combining ease of installation with high-performance heating outputs.
