ProWarm™ LoFlo™ LITE Overlay Panels

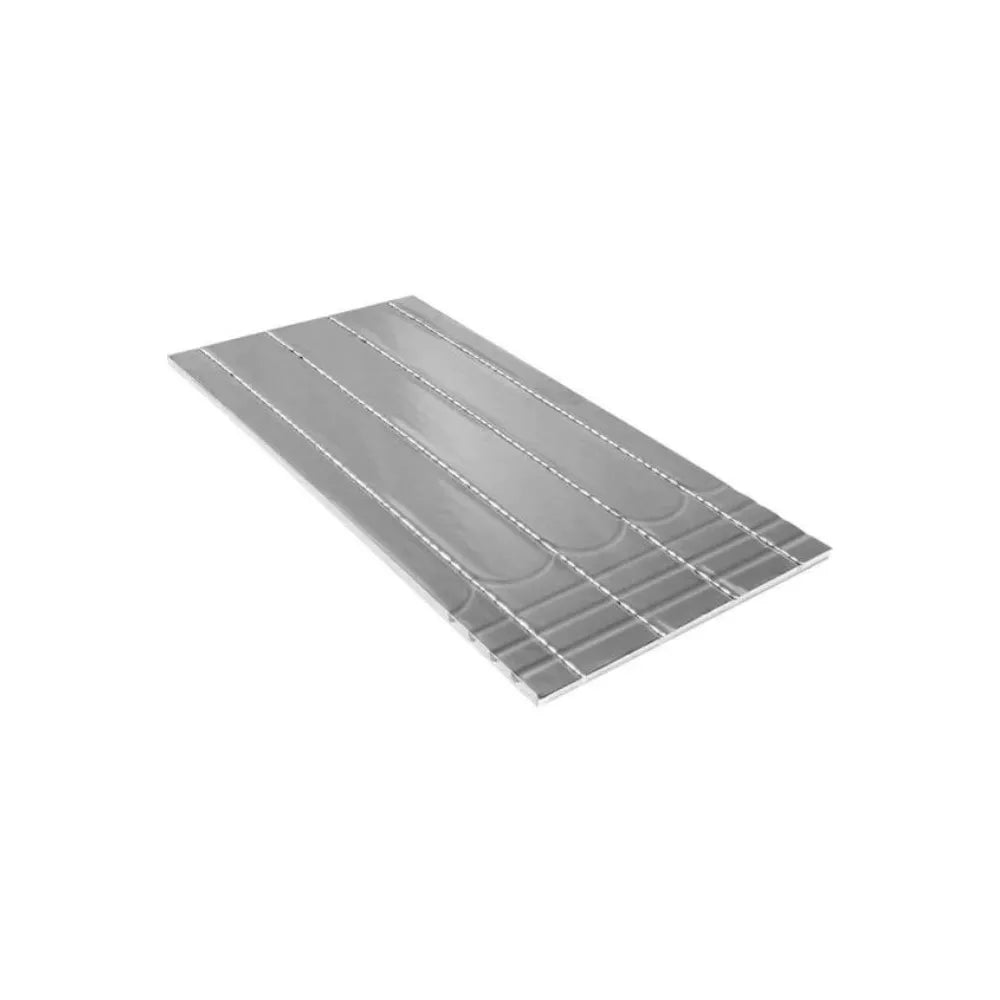

Discover the exceptional versatility and performance of the ProWarm™ LoFlo™ LITE Dual Purpose Overlay Panel, available in dimensions of 1200x600x20mm and 1200x600x16mm. These innovative panels are designed to accommodate various floor coverings, making them the ideal solution for both tiles and floating floors, such as engineered wood and laminate. With two different installation methods for each flooring type, achieving the perfect underfloor heating system is effortless.

Key Features:

Suitable for 16mm and 20mm Pipework: The panels are specifically designed to be compatible with 16mm or 20mm pipework (dependent on the selected option), ensuring efficient heat transfer and optimal performance.

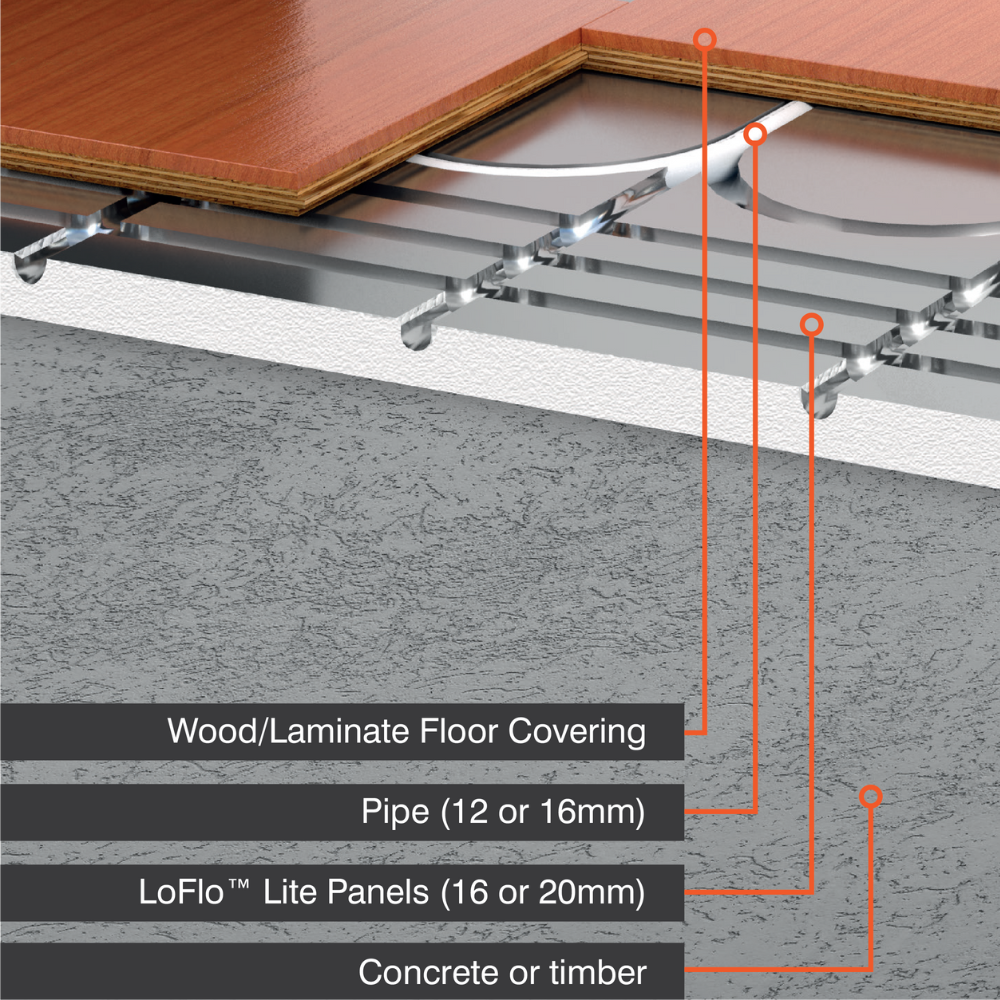

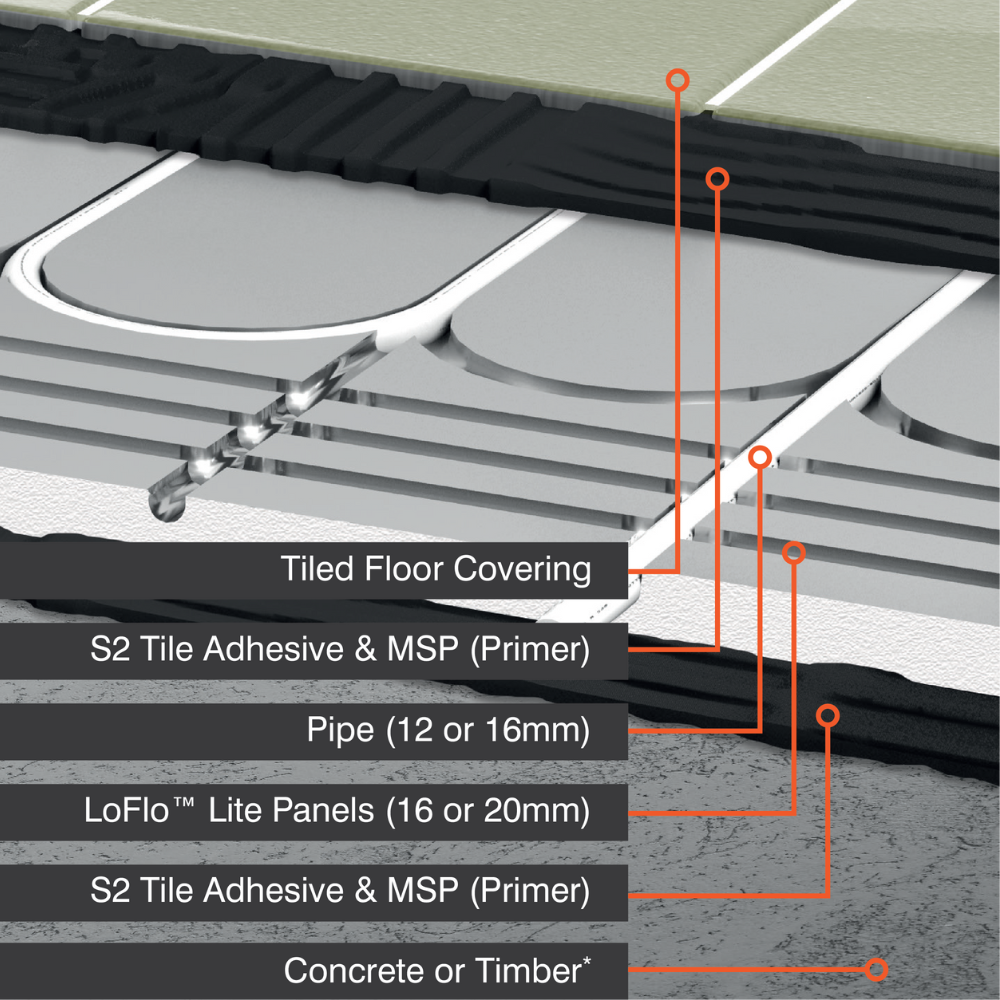

Dual-Purpose Design: These panels serve a dual purpose, allowing you to use them as a reliable underlay for both tiles and floating floors. Enjoy the flexibility to choose your desired floor covering without compromising the effectiveness of your underfloor heating system.
Consistent Grade Polystyrene: ProWarm™ LoFlo™ LITE panels utilize EPS 400 kpA grade polystyrene consistently throughout the product, ensuring quality and durability.
Effective Heat Distribution: Featuring a bonded 200-micron aluminium heat diffuser, these panels ensure even and rapid heat transfer across the entire floor surface, providing optimal heat output and superior comfort in your living space.
Ultra-Strong and Lightweight: The LoFlo™ LITE panels are engineered to be ultra-strong yet lightweight, making them easy to handle and install, thus facilitating a hassle-free installation process.
Accepts Various Floor Coverings: These panels are compatible with a wide range of floor coverings, including laminate, engineered wood, and porcelain/ceramic tiles, allowing you to choose the perfect finish for your space.
Peace of Mind Installation: ProWarm™ LoFlo™ LITE panels are the only panels on the market approved by Instarmac Group PLC, a recognized leader in the tile adhesives and levelling compound market, and a member of The Tile Association. This guarantees that your installation meets the highest standards of quality and reliability.

Experience the ultimate convenience and performance with the ProWarm™ LoFlo™ LITE Dual Purpose Overlay Panel. These panels offer exceptional versatility, easy installation, and the ability to accommodate a variety of floor coverings. Install confidently and enjoy the benefits of a high-quality, energy-efficient underfloor heating system.

The 20mm panel thickness is compatible with 16mm pipework.
The 16mm panel thickness is compatible with 12mm pipework.
Pipe spacing of 150mm is applicable for both 20mm and 16mm panels.

Each panel measures 1200x600 (0.72m²) in coverage; therefore, you would need 14 boards to cover a 10m² area, for example.

Please note: This product should be secured to the floor using either glue or screws; it is not advised to have these panels unsecured.
