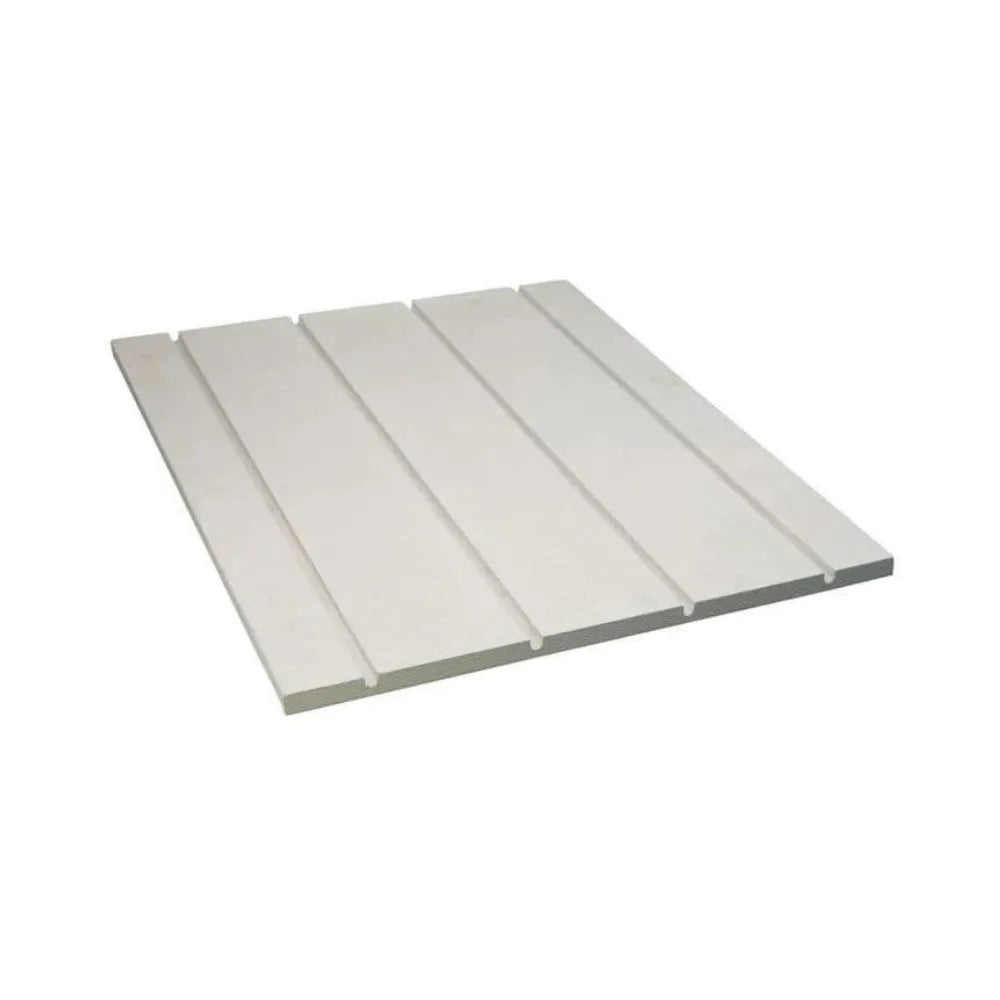

ProWarm™ LoFlo™ MAX Overlay Boards

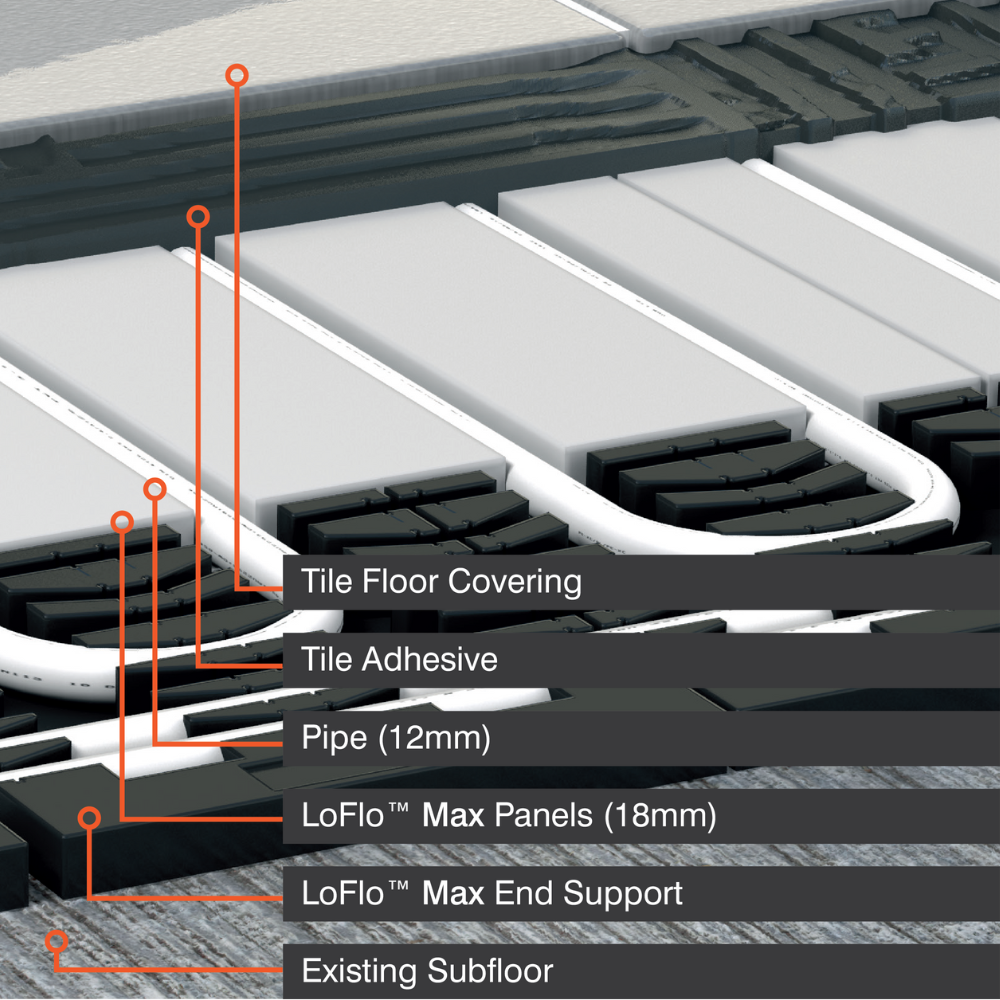

ProWarm™ LoFlo™ Max Overlay Boards feature a high-density dry gypsum fibre board, available in 15mm or 18mm thicknesses, serving as an efficient heat-conducting surface. This innovative system effectively transfers heat from underfloor heating pipes to the floor above, providing a comfortable and evenly heated environment. With a low build-up height and easy installation, LoFlo™ Warm-Panels are ideal for various underfloor heating applications.

The LoFlo™ Warm-Panels are compatible with all types of floor coverings, making them a versatile solution for your heating needs. Specifically designed for use with our pipework, they ensure optimal performance and efficiency.

Please note that the 15mm boards fit 10mm pipes, while the 18mm boards only fit 12mm pipes.

Key Features

• Ready-Made Pipe Spacing: The panels provide pre-determined pipe spacing, ensuring accurate and consistent heat distribution throughout the heated floor area.
• Suitable for All Floor Constructions: Whether for a retrofit or new construction project, the LoFlo™ Warm-Panels can be installed on top of any level floor construction, providing flexibility and convenience.
• Ideal for Large Areas: These panels are particularly suited for large, regular-shaped areas, offering efficient and uniform heat spread.
• Quick Installation and Direct Tile Laying: The Warm-Panels facilitate straightforward installation, allowing tiles to be laid directly on top for a seamless finish.
• Low Profile: With a thickness of only 15mm or 18mm (depending on the selected option), the LoFlo MAX panels maintain a low profile, minimizing any impact on floor height and ensuring compatibility with various flooring systems.
• High Heat Output: The Warm-Panels can achieve impressive heat outputs of up to 104.4 W/m²*, providing excellent warmth and comfort in any space.
• Dimensions: Each panel measures 800mm x 600mm x 15mm or 18mm (width x length x thickness), offering a practical and versatile size for installation.
• Independently Tested: These panels have been rigorously tested and independently certified by BSRIA, ensuring their quality, performance, and reliability.

Experience the exceptional performance and ease of installation offered by ProWarm™ LoFlo™ Max Overlay Boards. Create a comfortable and efficiently heated living space with this reliable underfloor heating solution.

Specifications

Floor Heat Output (w/m2)
