ProWarm™ Pro Digital Thermostat

The ProWarm™ Pro Digital Thermostat is an advanced and feature-rich option for controlling the temperature of your underfloor heating system. With its slimline profile, this thermostat offers precise temperature control and a range of programmable settings tailored to your individual needs.

Key Features:

• Multiple Sensor Options: The Slimline Pro Digital Thermostat can utilize floor, air, or combination sensors to accurately measure and control temperature. This flexibility allows you to choose the most suitable sensor for your specific requirements.
• Fully Programmable: Offering comprehensive programming capabilities, you can set different temperature profiles for each day of the week. With up to four set points per day, you have complete control over your heating schedule.

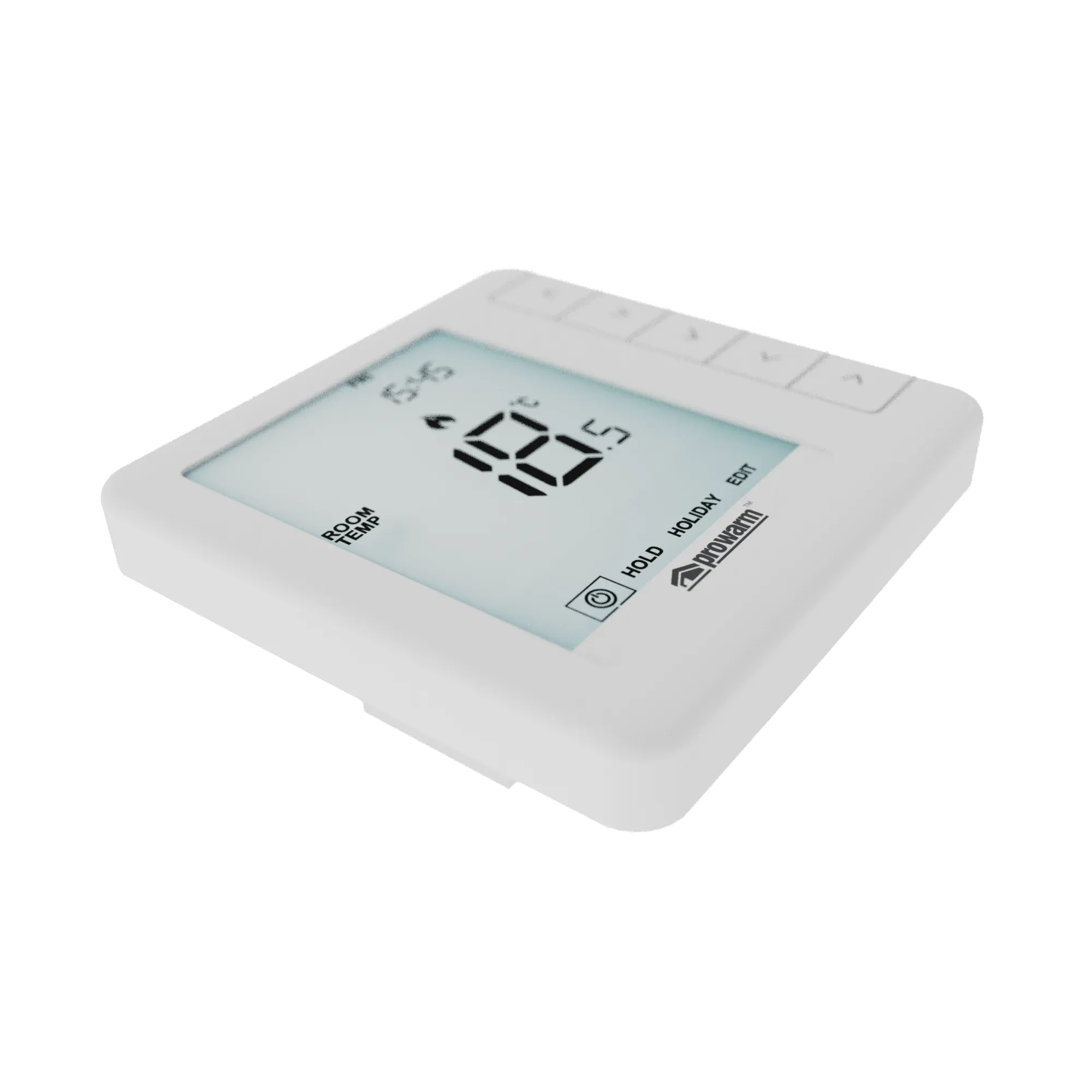

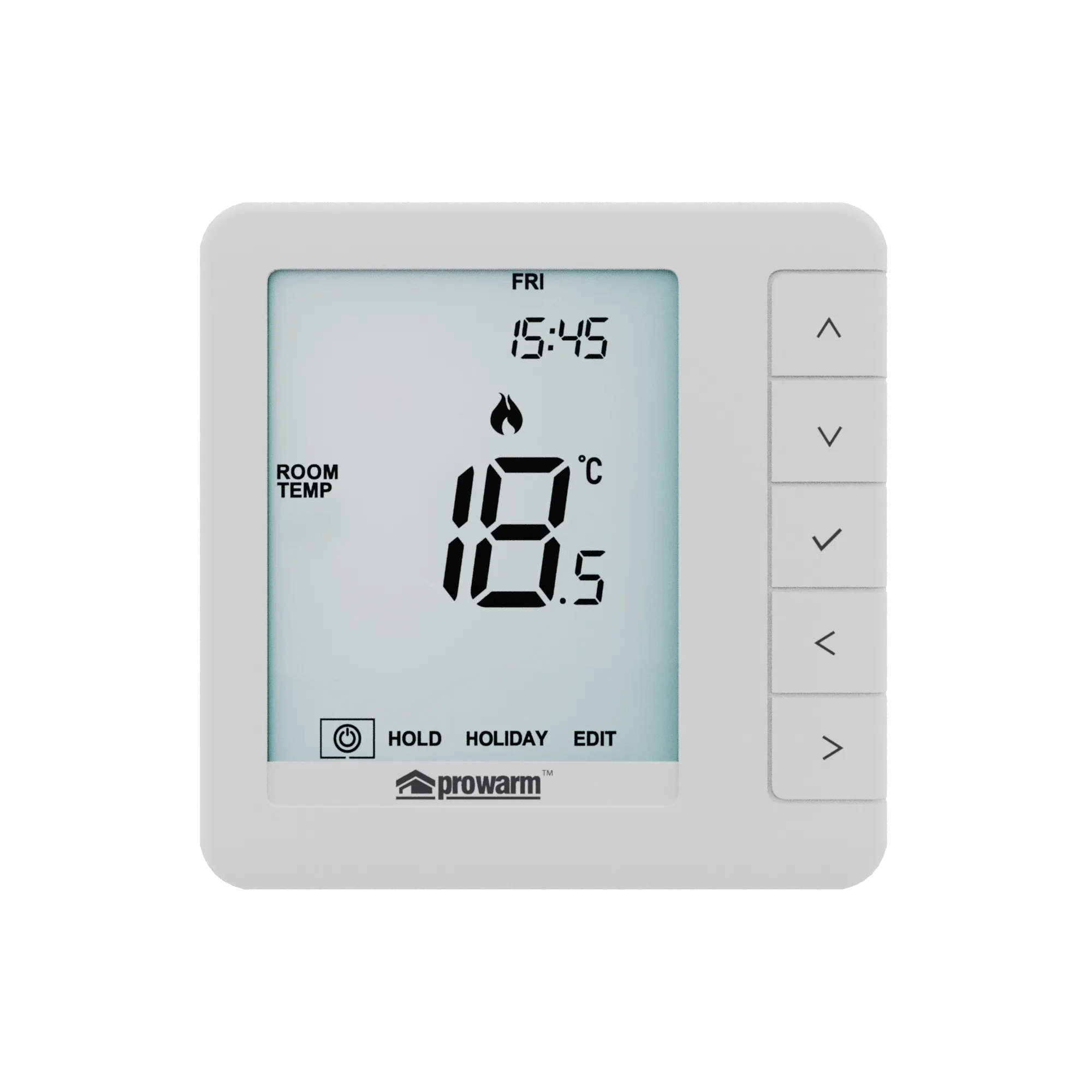

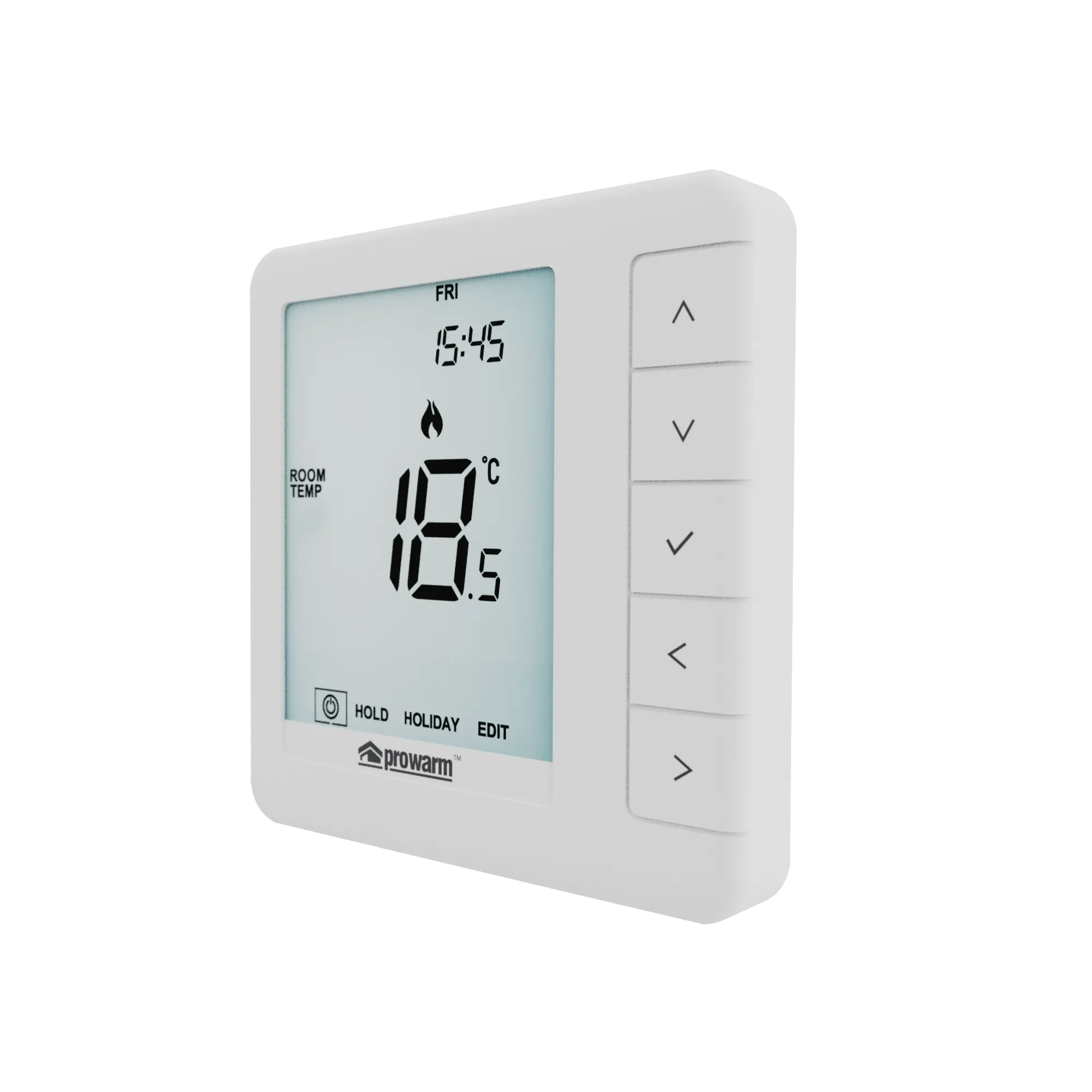

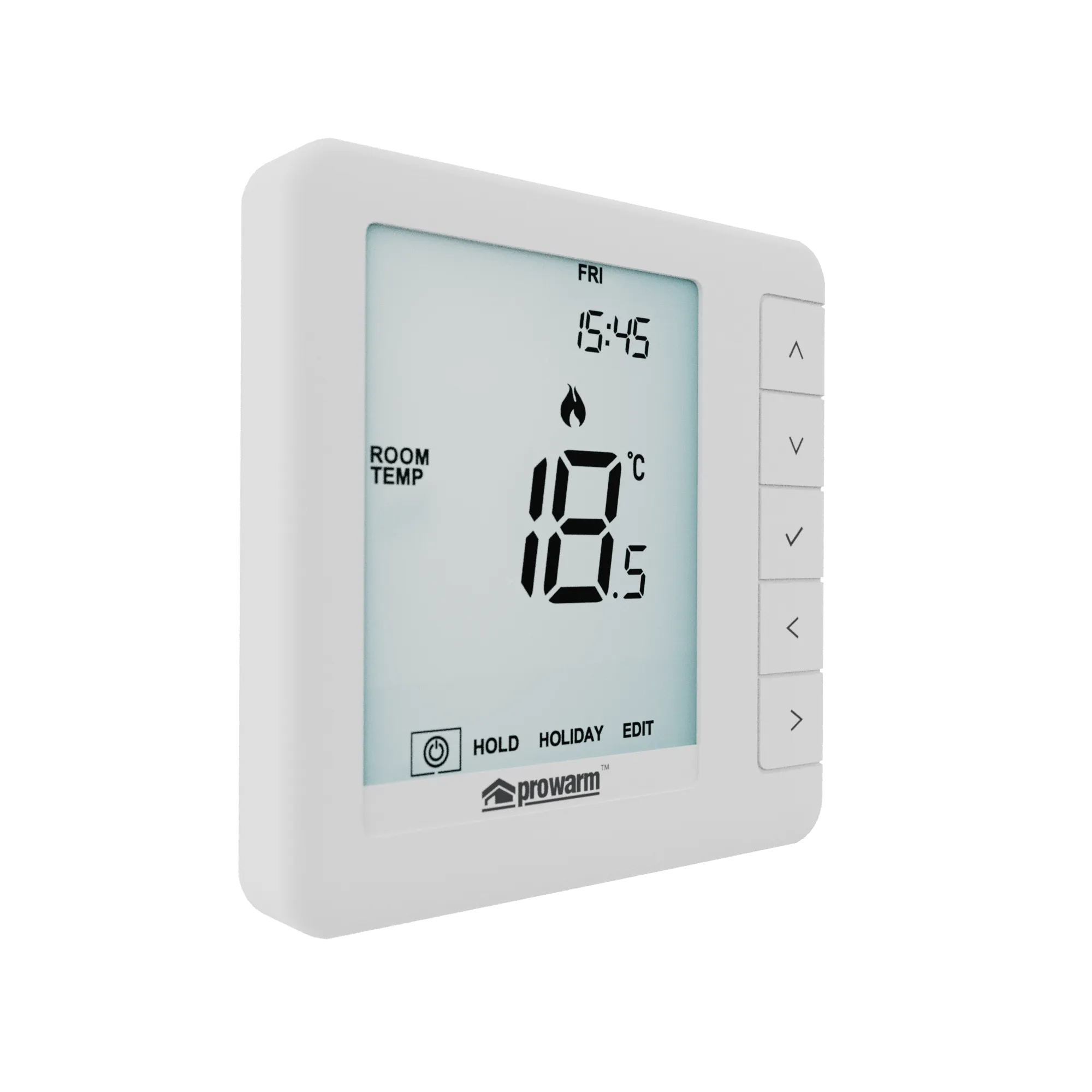

• Stylish Design: Featuring a sleek and contemporary white design with touch-sensitive keys, the Pro Digital Thermostat adds a modern touch to your interior. The display is equipped with a white backlight for easy readability.
• Holiday Mode and Manual Override: The thermostat includes a convenient holiday mode to lower the temperature during your absence, helping you save energy. A manual override function allows for temporary temperature adjustments as needed.
• Lifetime Warranty: All ProWarm™ thermostats, including the Pro Digital Thermostat, come with a lifetime warranty, ensuring long-term peace of mind and customer satisfaction.
• High Switching Capacity: Capable of handling a maximum load of 16 amps at 230V AC, the Pro Digital Thermostat is suitable for various heating systems.
• Adaptive Start Learning Function: This thermostat features an adaptive start learning function that determines the optimal time to start heating, ensuring your desired temperature is reached at the scheduled time. This promotes energy efficiency and comfort.
• Temperature Format and Clock System Options: You can choose between °F and °C temperature formats, as well as a 12-hour or 24-hour clock system, allowing for a customised display.
• Power Break Memory: In the event of a power outage, the thermostat preserves your programs and settings, maintaining your desired configurations.
• Remote Floor Probe Included: A 3-meter remote floor probe is included, enabling accurate temperature measurement and control directly from the floor.

Experience the convenience and efficiency of the ProWarm™ Pro Digital Thermostat. With its advanced features, stylish design, and reliable performance, this thermostat provides precise temperature control and ensures optimal comfort in your underfloor heating system.

Specifications

Installation

This thermostat is designed to be flush mounted and requires a back box of 35mm (minimum depth) to be sunk into the wall prior to installation.

• Using a small screwdriver, slightly loosen the screw from the bottom face of the thermostat. You can then carefully separate the front half from the back plate.

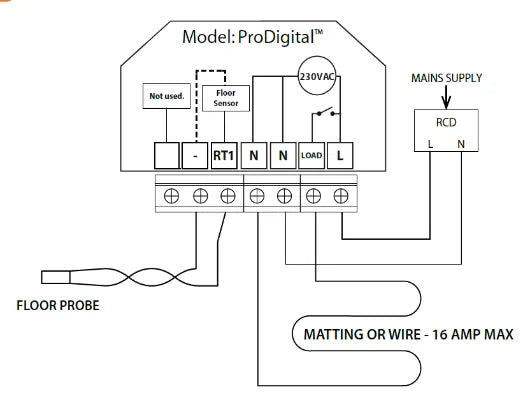

• Place the thermostat LCD front plate somewhere safe. Terminate the thermostat as shown in the diagram below.
• Screw the thermostats back plate securely into the back box.
• Replace the front of the thermostat onto the back plate, by locating the pins in the socket then insert the top edge first
