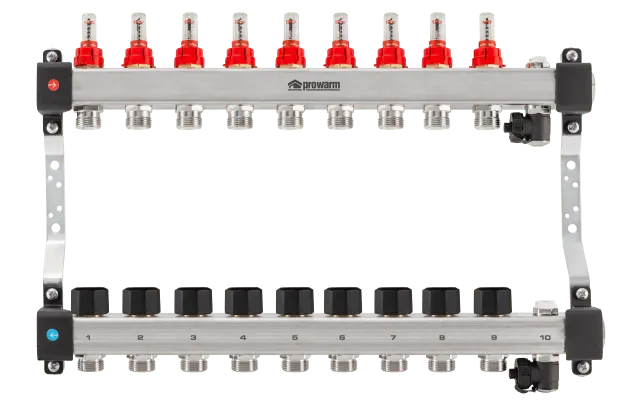

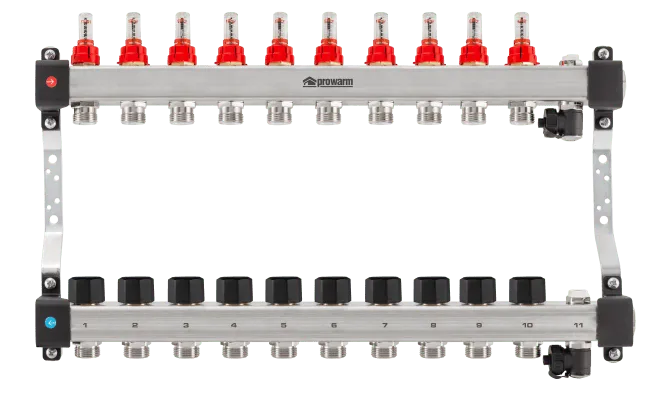

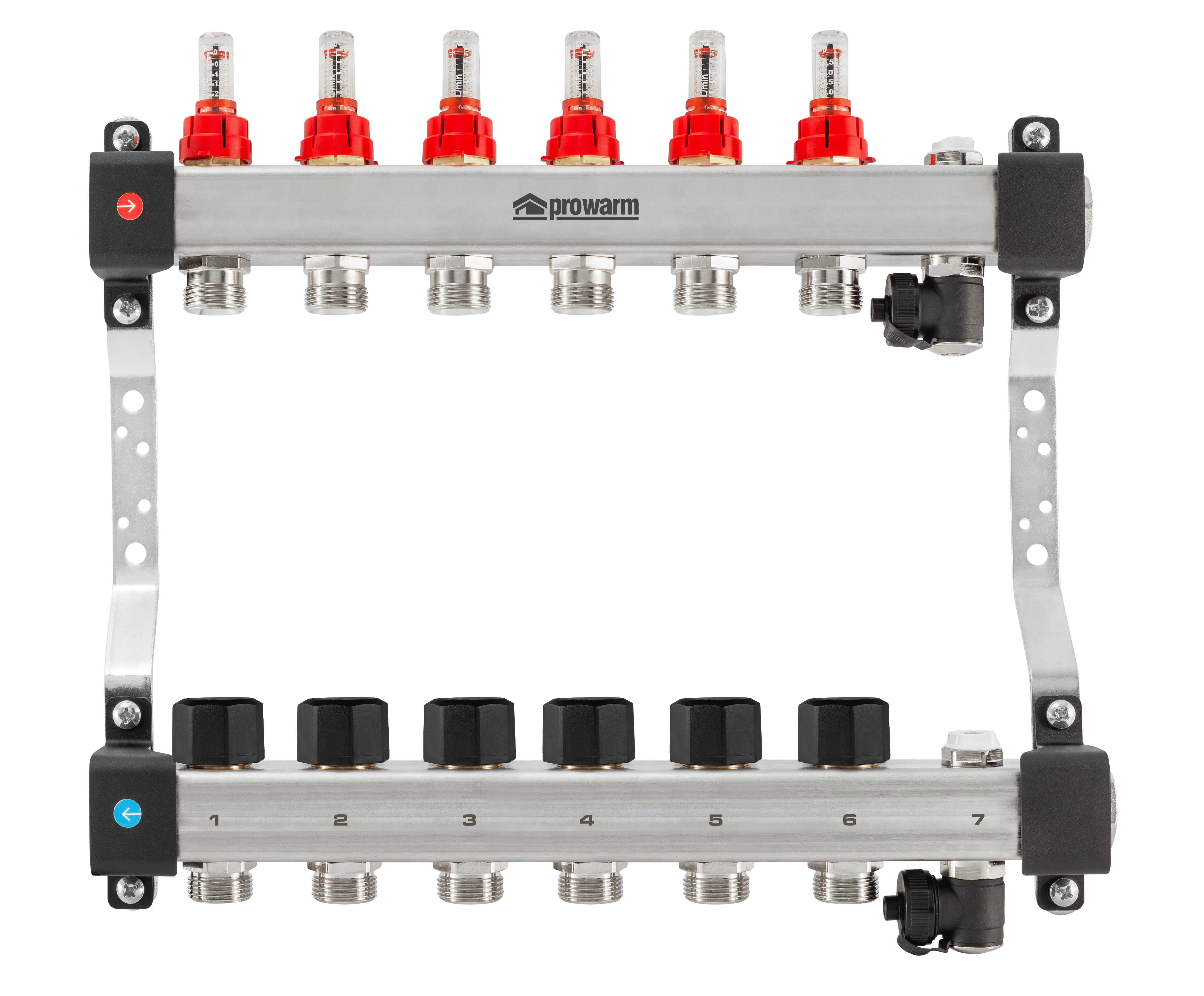

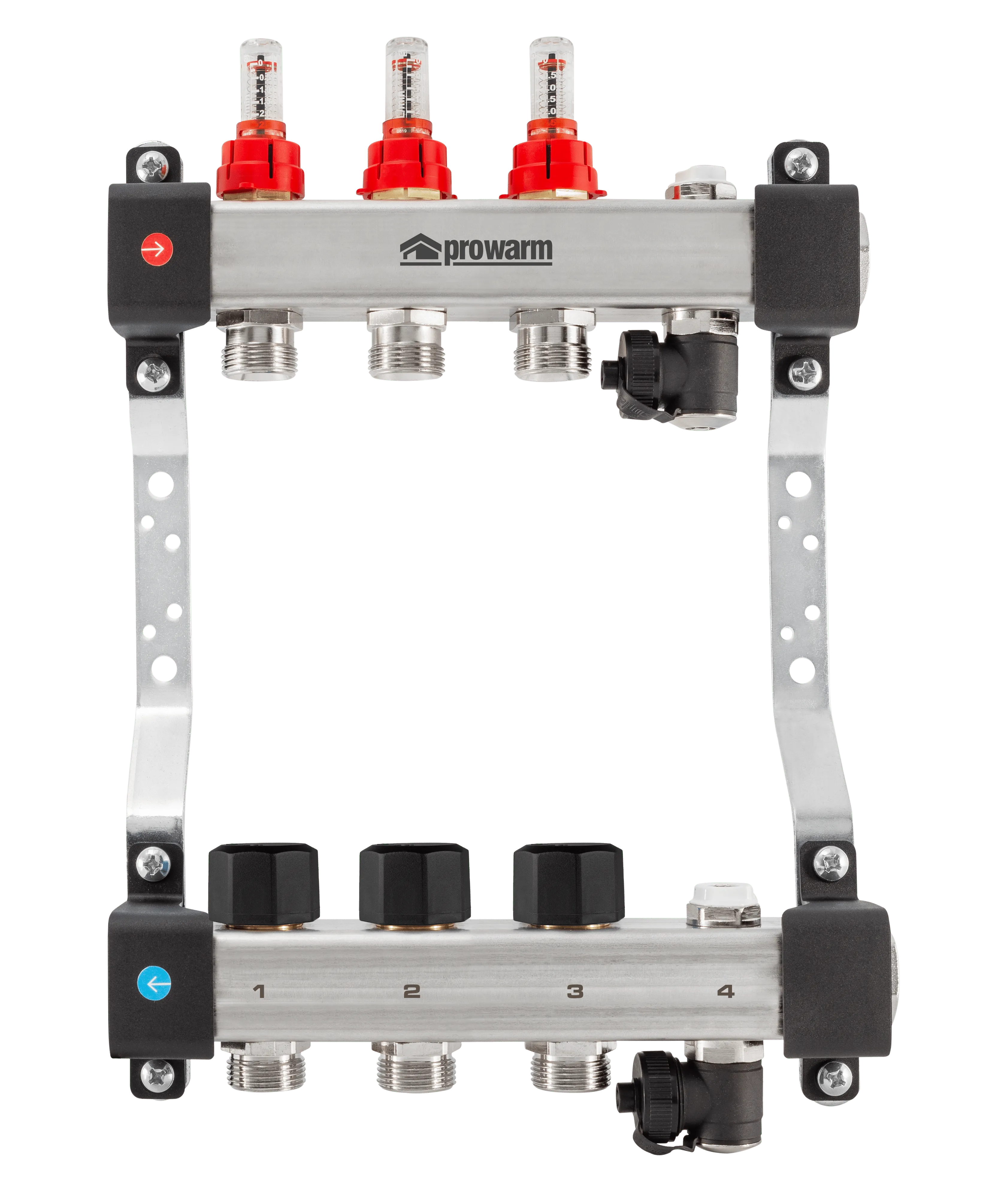

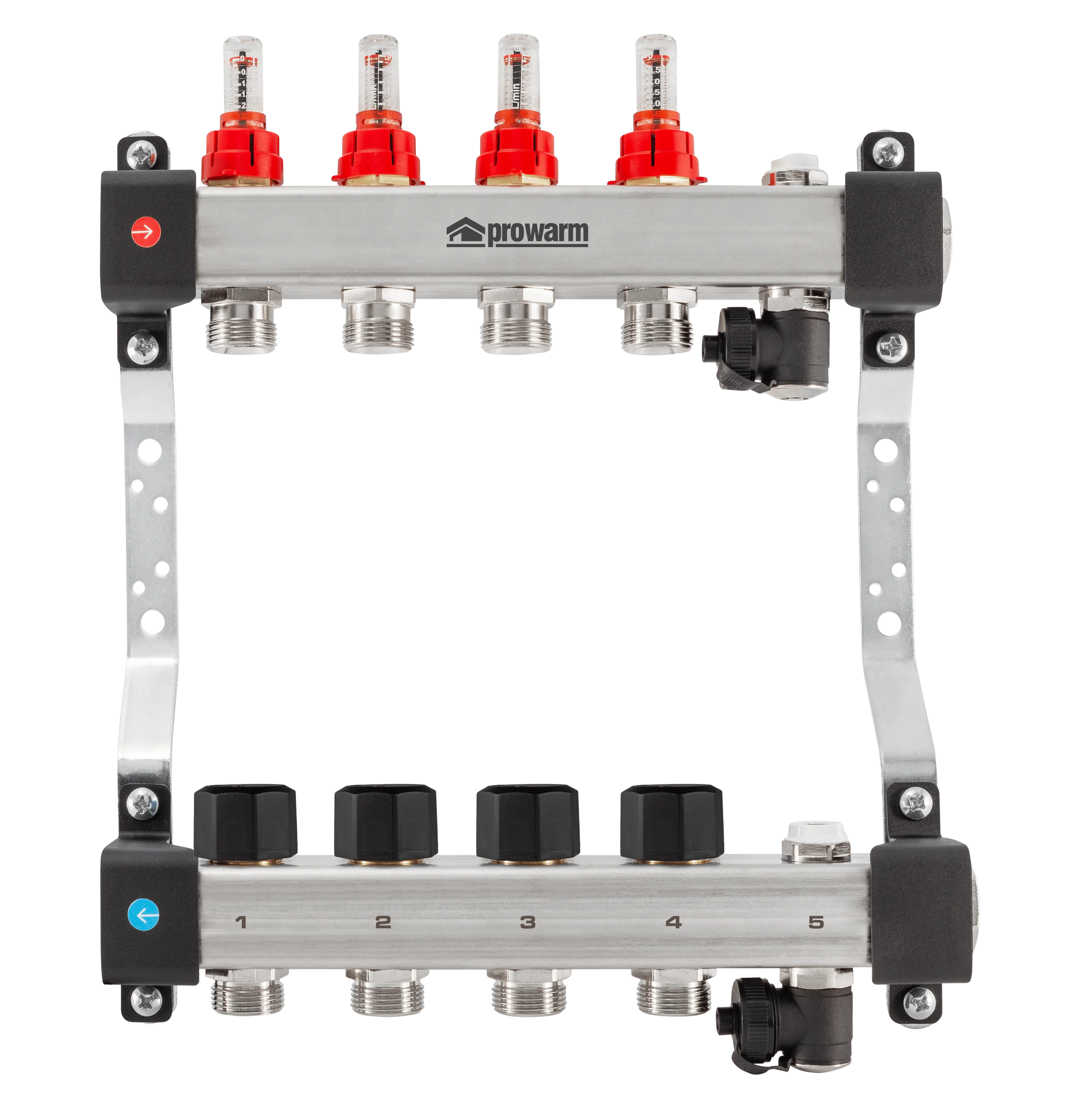

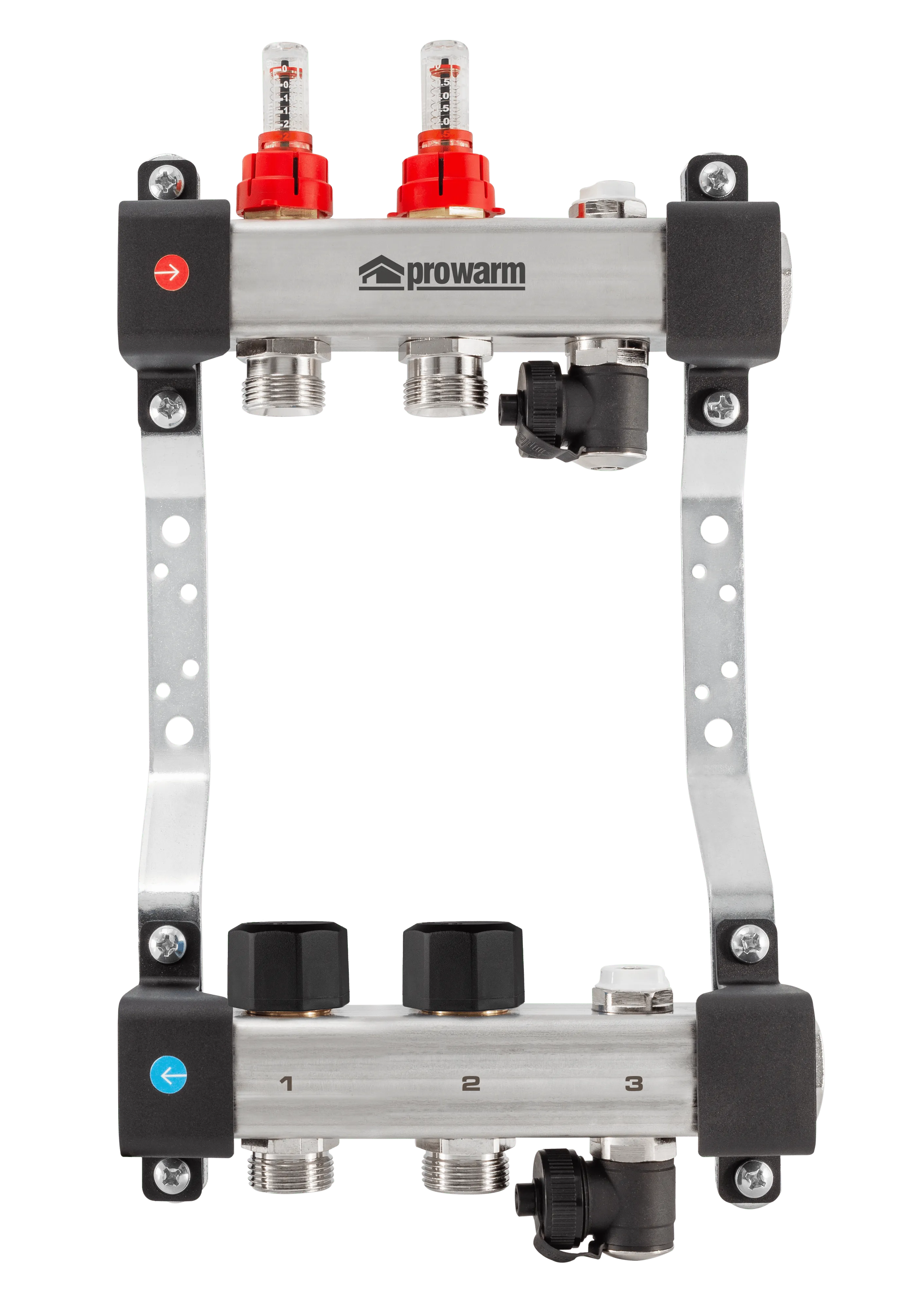

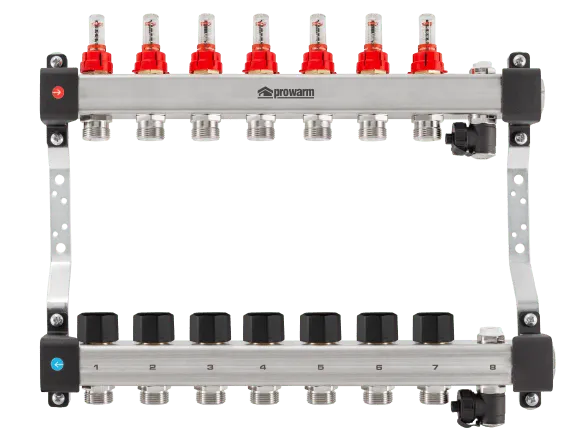

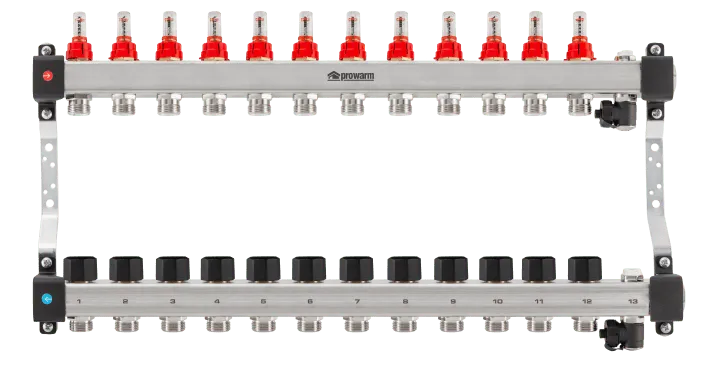

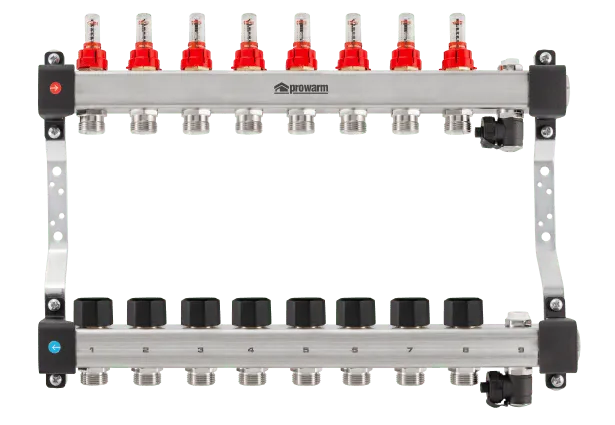

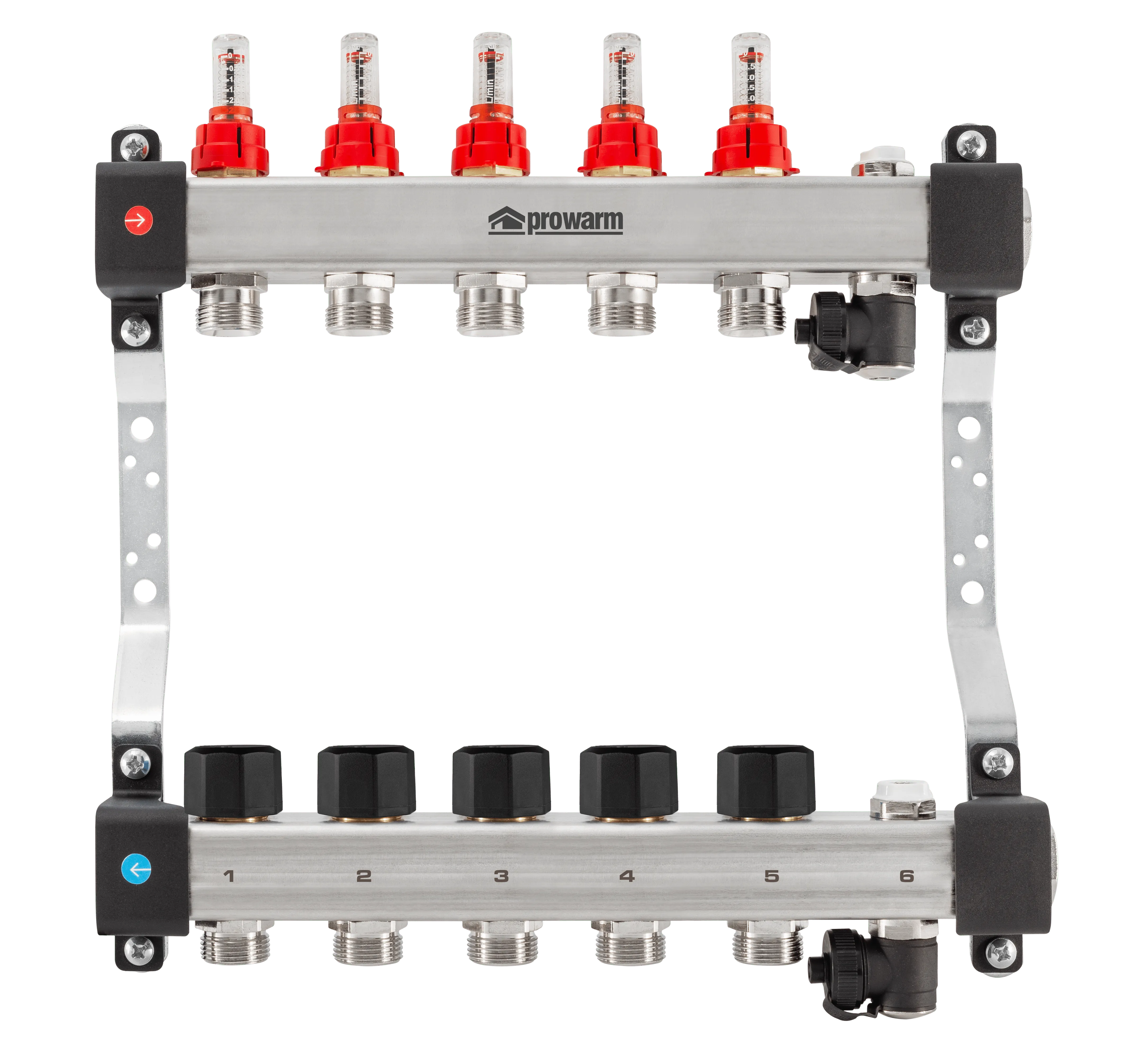

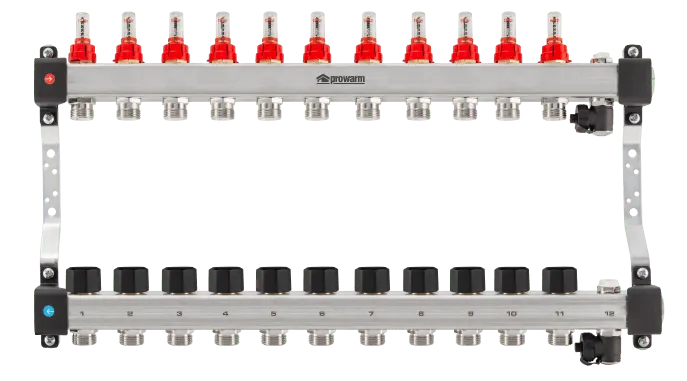

ProWarm™ Underfloor Heating Manifold

The ProWarm™ Underfloor Heating Manifold is the ultimate solution for the efficient and reliable distribution of heat throughout your underfloor heating system. Designed with a focus on quality and durability, this manifold meets the highest standards, ensuring long-lasting performance and peace of mind for your heating needs.

Crafted from the finest grade materials, the ProWarm™ Manifold guarantees superior reliability and longevity. Paired with high-quality Pert-Al-Pert Pipe, this manifold ensures optimal heat transfer and distribution, maximizing the efficiency of your underfloor heating system.

Assembled by market leaders in manufacturing from around the globe, ProWarm™ products are synonymous with quality and innovation. With the ProWarm™ peace of mind warranty, you can trust in the reliability and durability of this manifold for years to come.

Manufactured to the highest quality standards, the stainless steel manifold offers exceptional performance and durability. Each port is equipped with a manual valve, providing individual control and flexibility over the flow of heating water. The adjustable flow meter simplifies system balancing, ensuring even heat distribution across the entire floor.

The ProWarm™ Underfloor Heating Manifold comes factory pre-assembled on fixing brackets, streamlining the installation process. The triple seal on pipe connections eliminates any risk of leakage, ensuring a secure and leak-free system. The new style manifold features an integrated filling and draining valve, enhancing ease of installation and maintenance.

With a 10-year guarantee, the ProWarm™ Underfloor Heating Manifold offers reliability, efficiency, and peace of mind. Experience the superior performance and convenience it brings to your underfloor heating system.

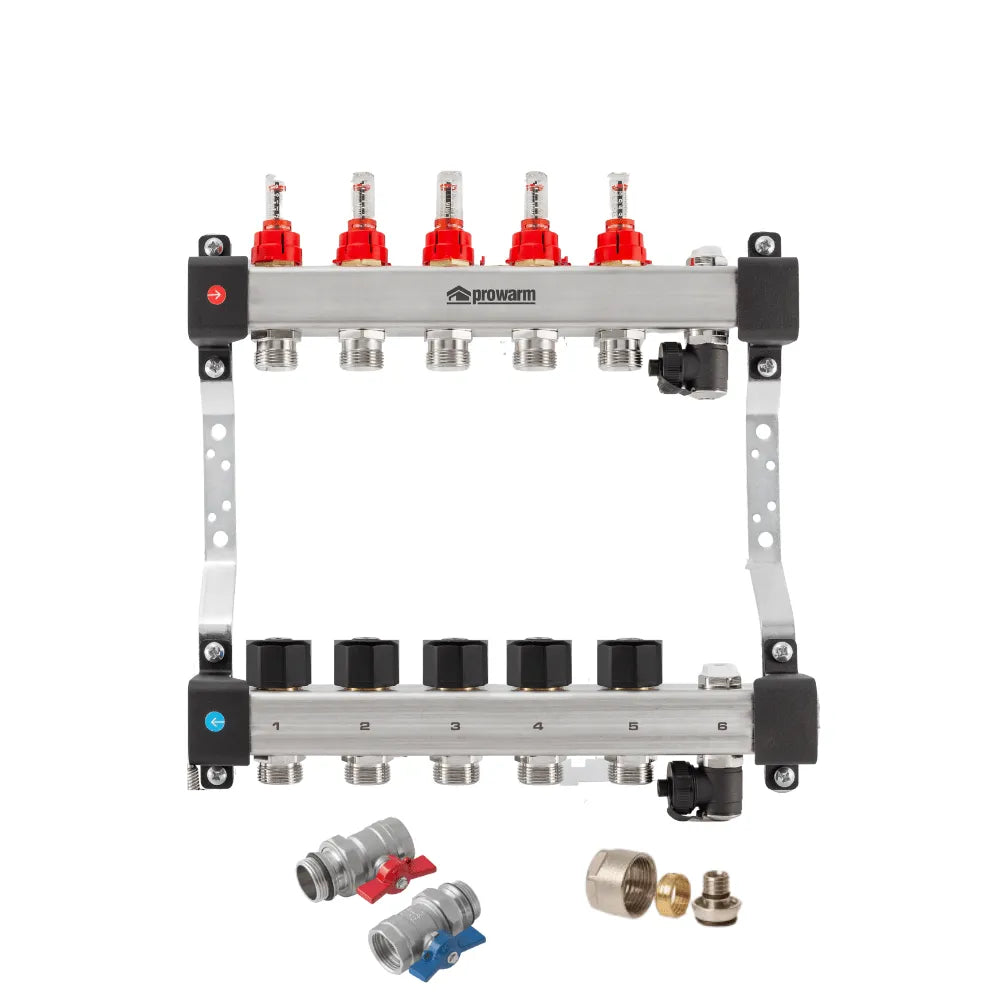

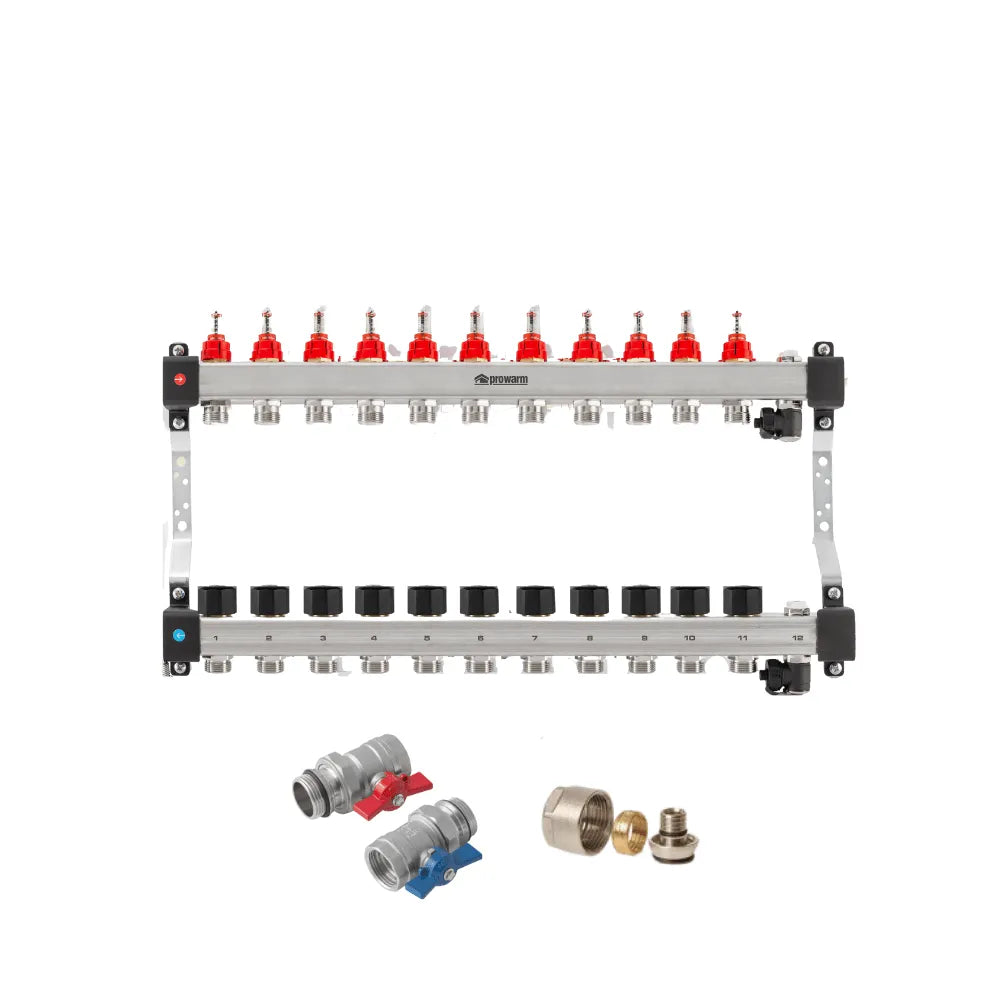

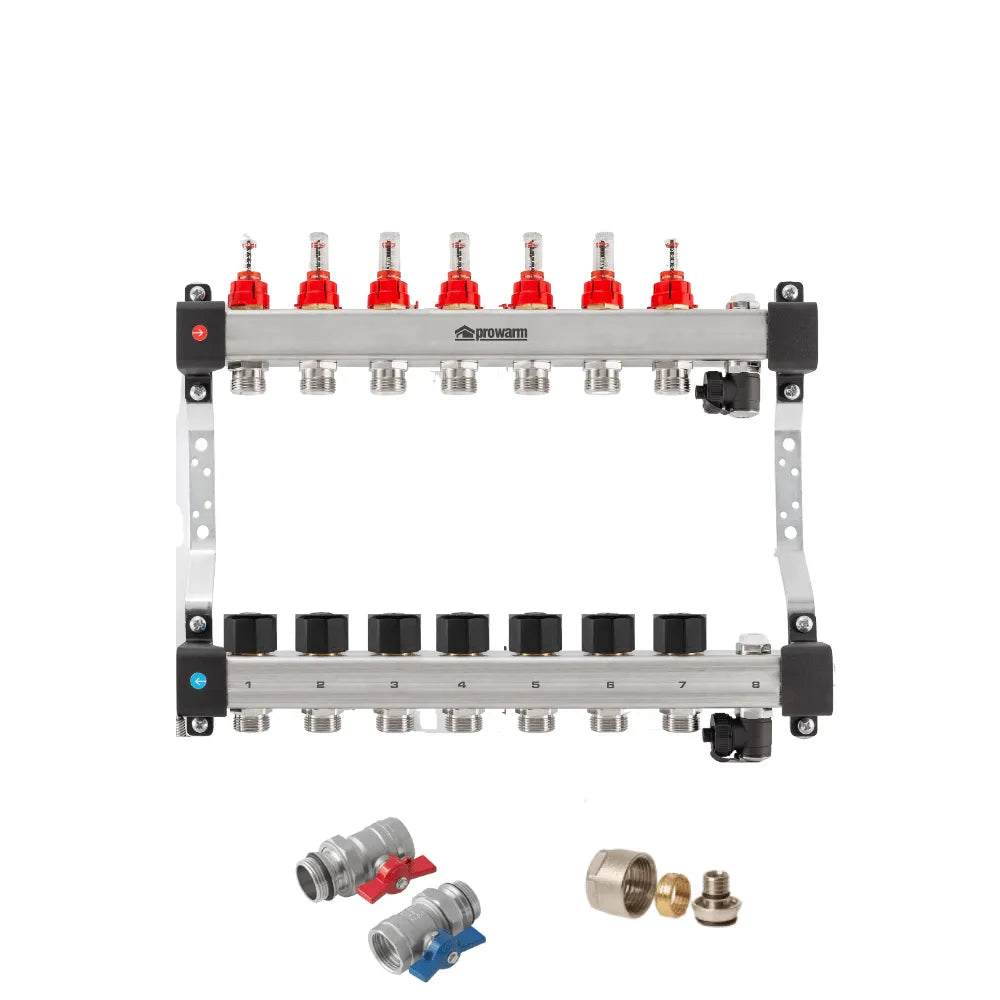

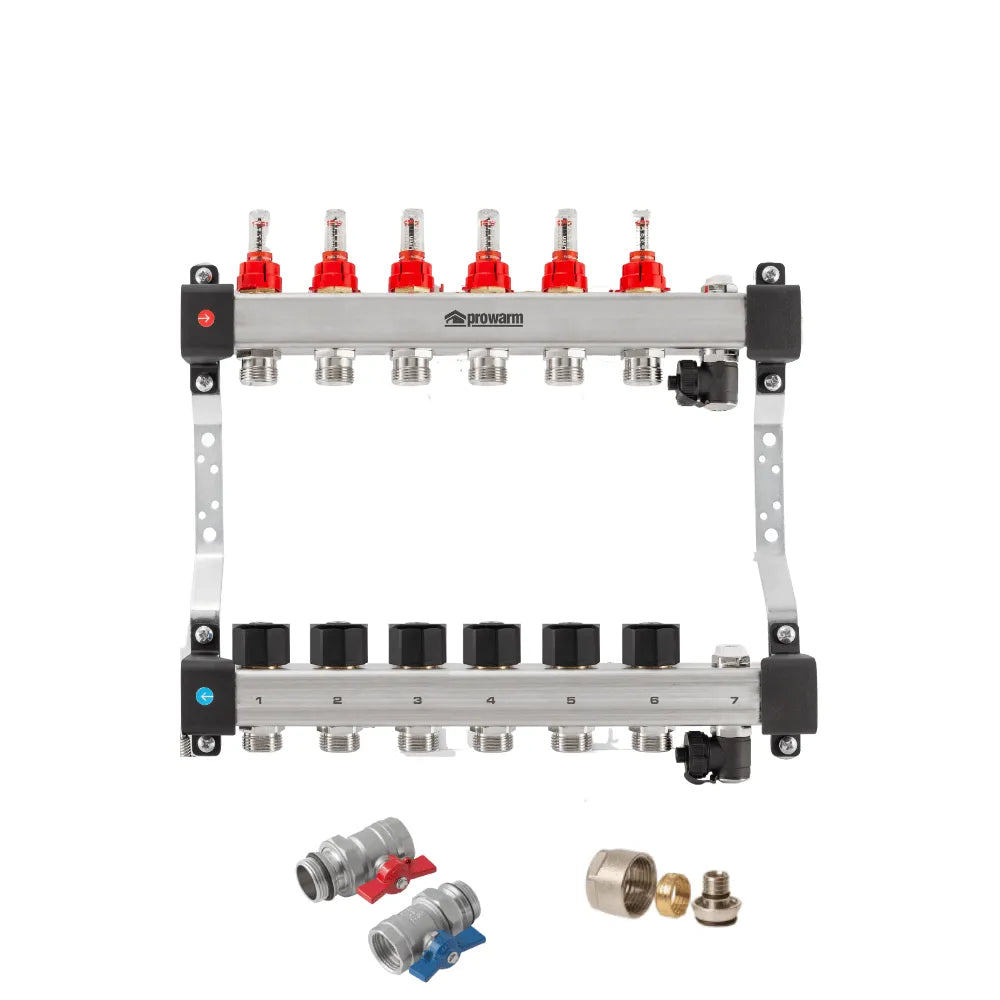

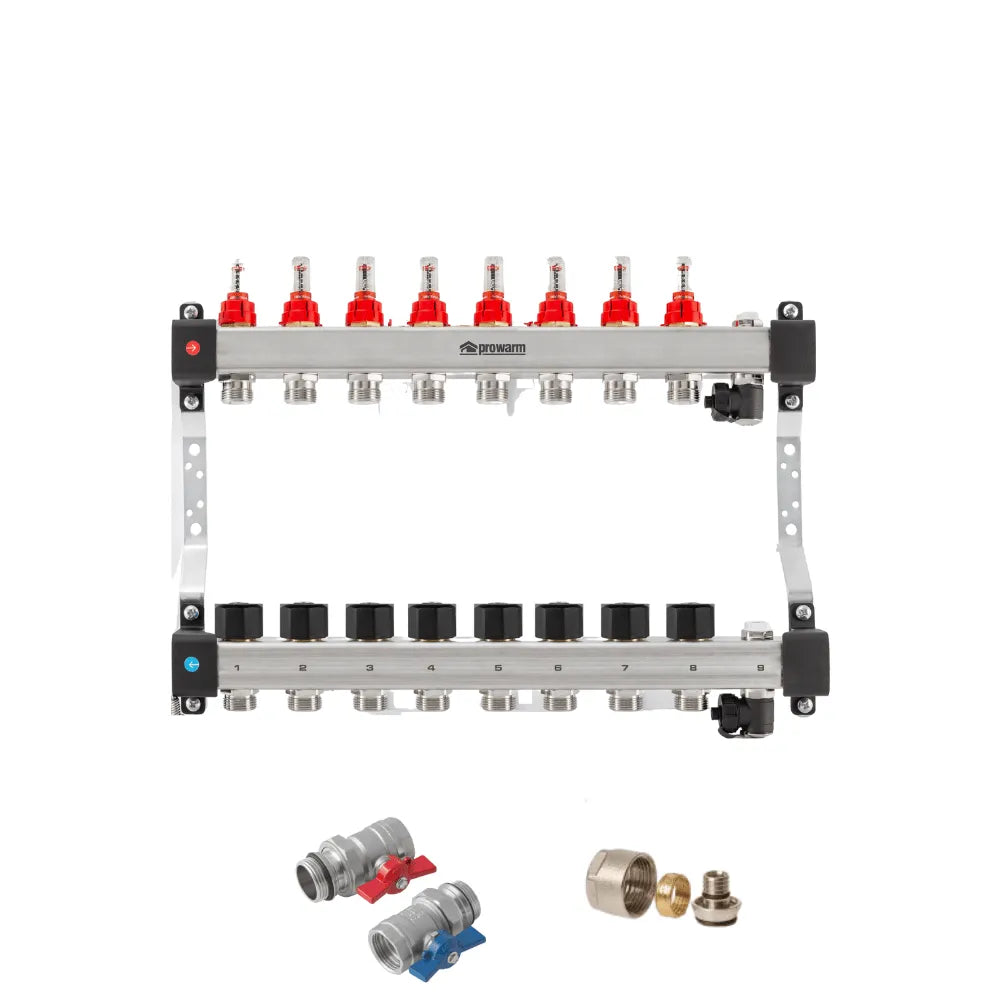

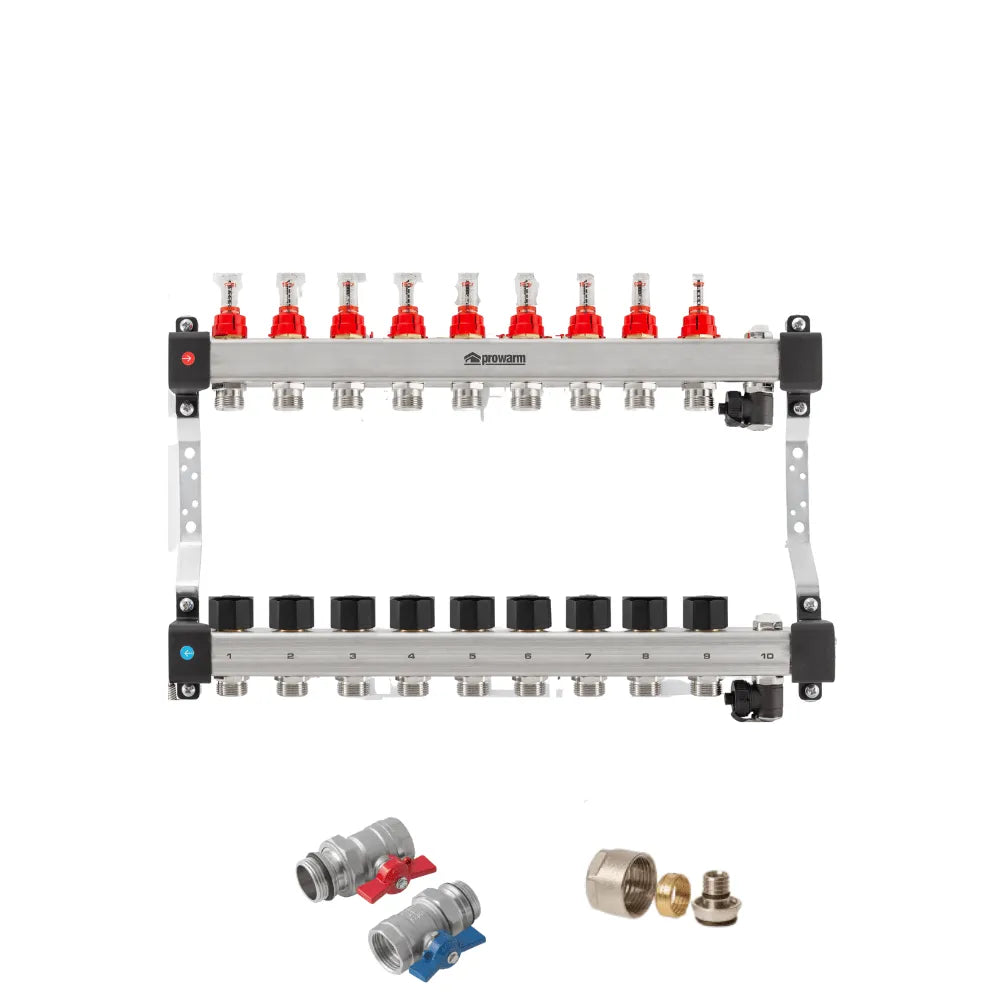

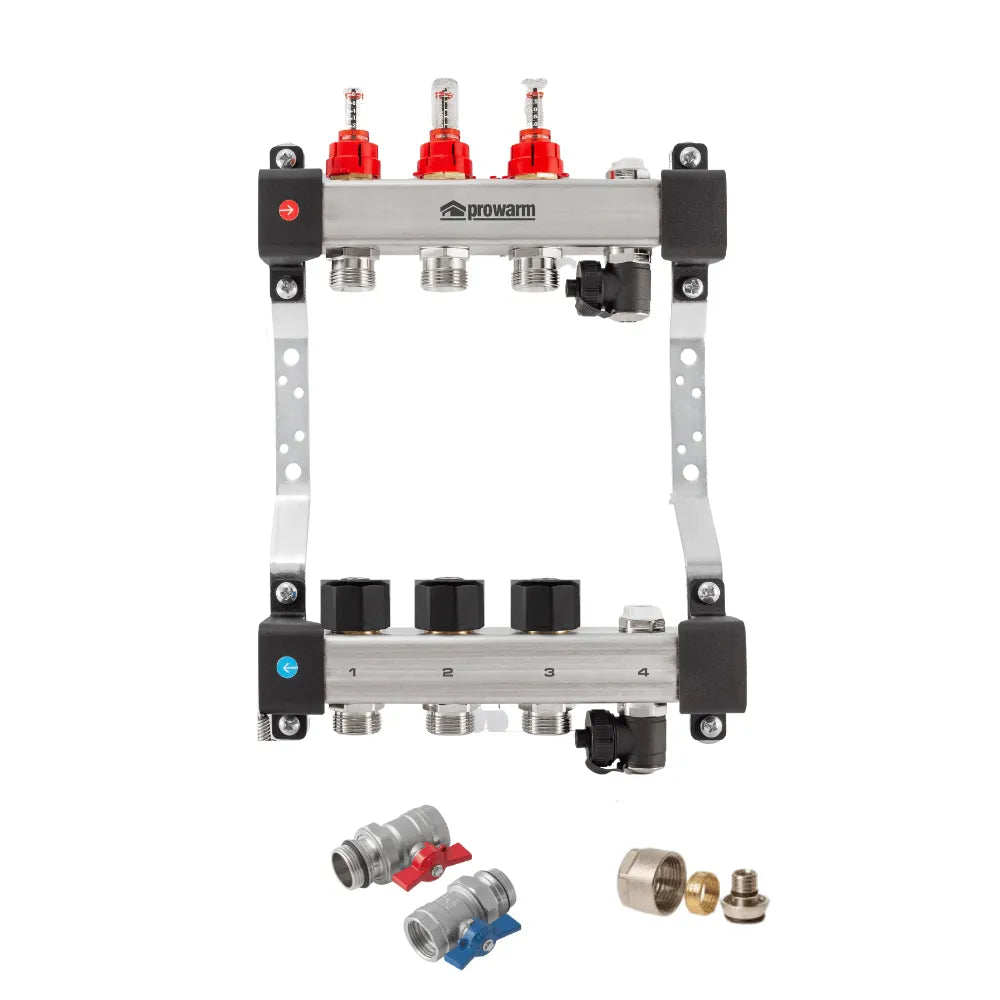

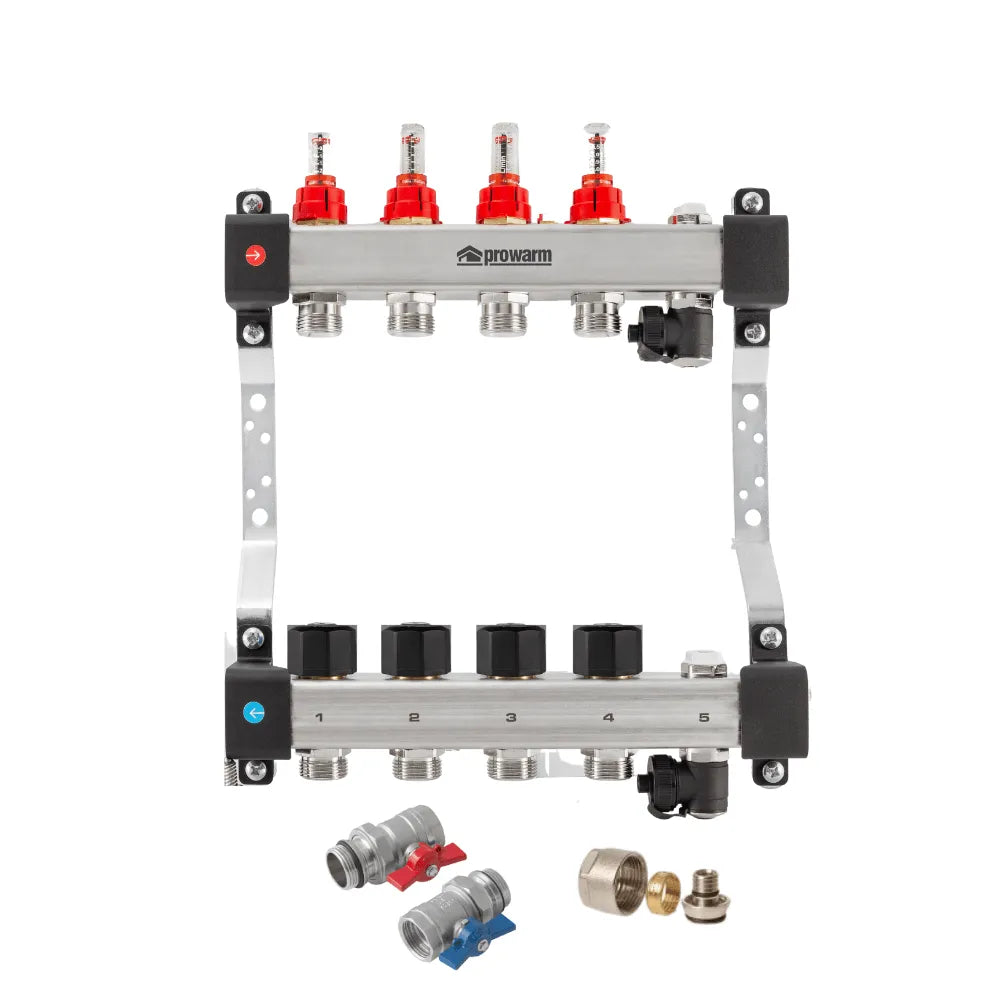

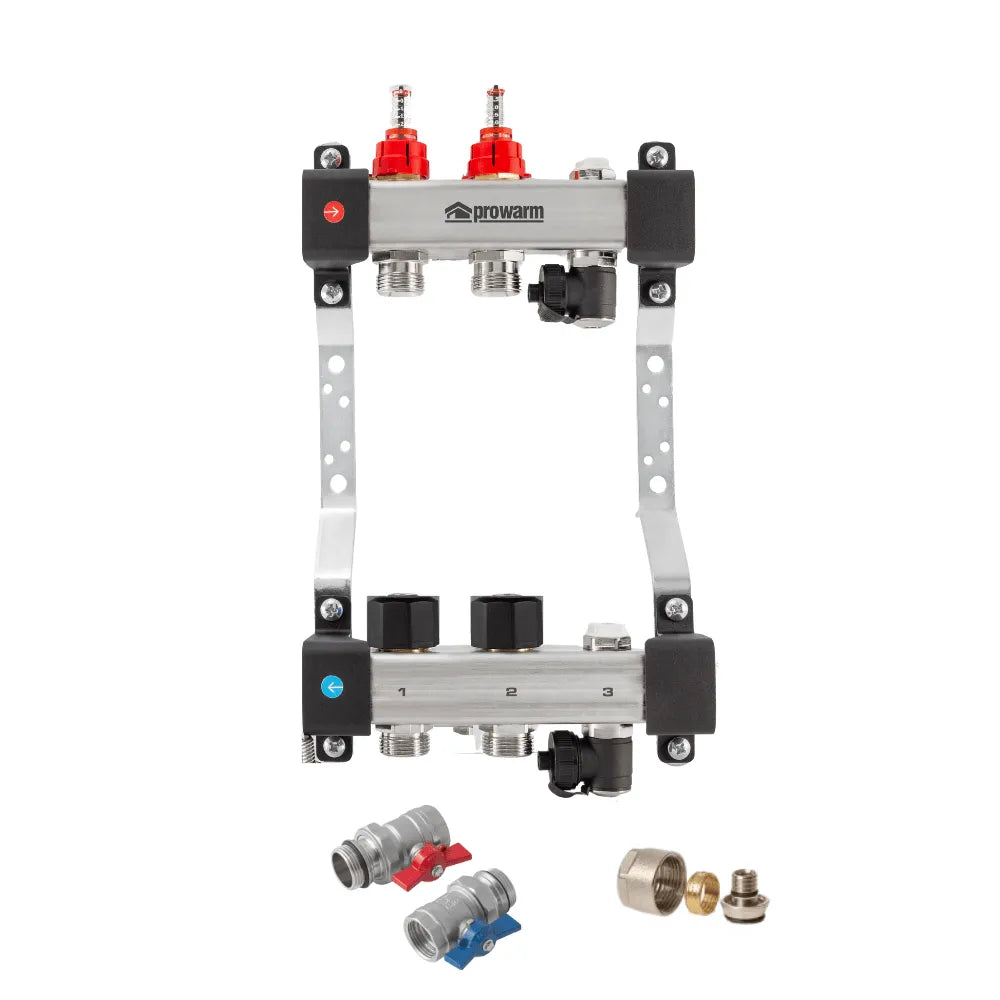

When ordered with 16mm fitting accessories, you will receive the ProWarm™ ball valve pair and twice as many 16mm Eurocone connectors as there are manifold ports (e.g., a 4-port manifold = 8x 16mm Eurocones).

Specifications

The ProWarm™ manifold dimensions are as below, please allow an addition 155mm for pump / mixing valve.

# Ports	A	B	C	D	E
2	337	210	50	190	83
3	337	210	50	240	83
4	337	210	50	290	83
5	337	210	50	340	83
6	337	210	50	390	83
7	337	210	50	440	83
8	337	210	50	490	83
9	337	210	50	540	83
10	337	210	50	590	83
11	337	210	50	640	83
12	337	210	50	690	83

(Width required with standard CST).

# Ports	A	B	C	D	E
2	337	210	50	190	83
3	337	210	50	240	83
4	337	210	50	290	83
5	337	210	50	340	83
6	337	210	50	390	83
7	337	210	50	440	83
8	337	210	50	490	83
9	337	210	50	540	83
10	337	210	50	590	83
11	337	210	50	640	83
12	337	210	50	690	83

# Ports	A	B	C	D	E
2	337	210	50	190	83
3	337	210	50	240	83
4	337	210	50	290	83
5	337	210	50	340	83
6	337	210	50	390	83
7	337	210	50	440	83
8	337	210	50	490	83
9	337	210	50	540	83
10	337	210	50	590	83
11	337	210	50	640	83
12	337	210	50	690	83

# Ports	A	B	C	D	E
2	337	210	50	190	83
3	337	210	50	240	83
4	337	210	50	290	83
5	337	210	50	340	83
6	337	210	50	390	83
7	337	210	50	440	83
8	337	210	50	490	83
9	337	210	50	540	83
10	337	210	50	590	83
11	337	210	50	640	83
12	337	210	50	690	83
