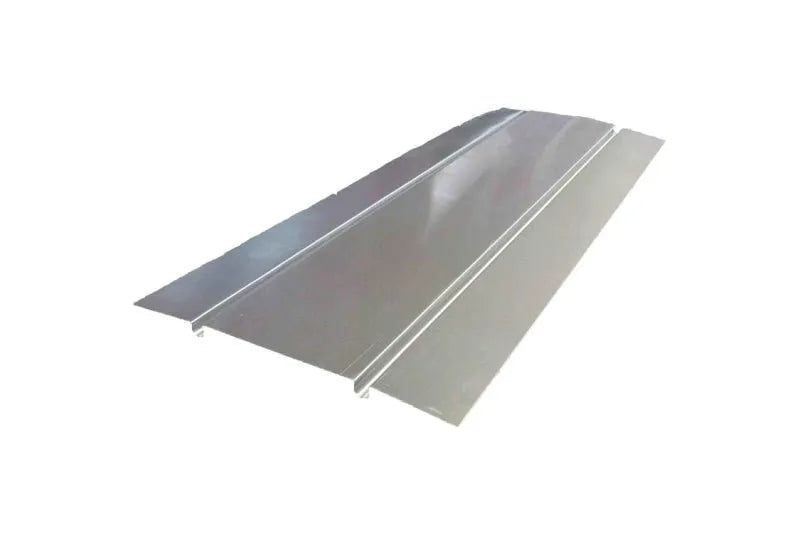

ProWarm™ Underfloor Heating Spreader Plates


Enhance the performance of your underfloor heating with ProWarm™ Underfloor Heating Spreader Plates. Crafted from high-quality aluminium, these diffuser plates are engineered to optimize heat distribution, ensuring consistent warmth across your entire floor.

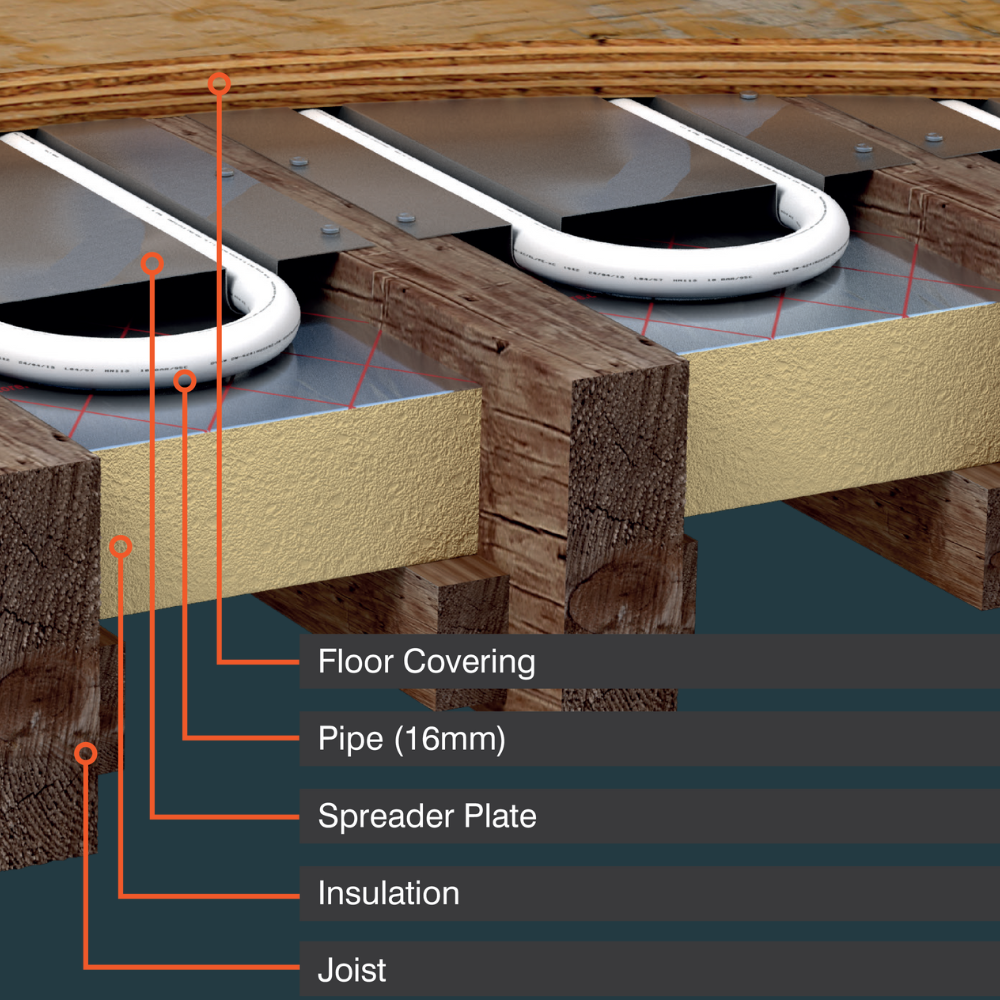

Designed specifically for suspended timber subfloors with joists spaced at 400mm centres, the ProWarm Spreader Plate System seamlessly integrates with our Pert-Al-Pert pipe. The pipe securely clips into the grooves of the spreader plate, which can be easily attached to joists using screws or nails.

To maximize efficiency and minimize heat loss, we recommend installing as much insulation as possible beneath the plates. Once installed, cover the system with a structural subfloor such as plywood or screed board for a flawless finish.

Upgrade your heating system with ProWarm™ and enjoy a more efficient and comfortable home.

Sizes available:

  • 390mmx1000mm - 200mm Centres
  • 390mmx1000mm - 150mm Centres

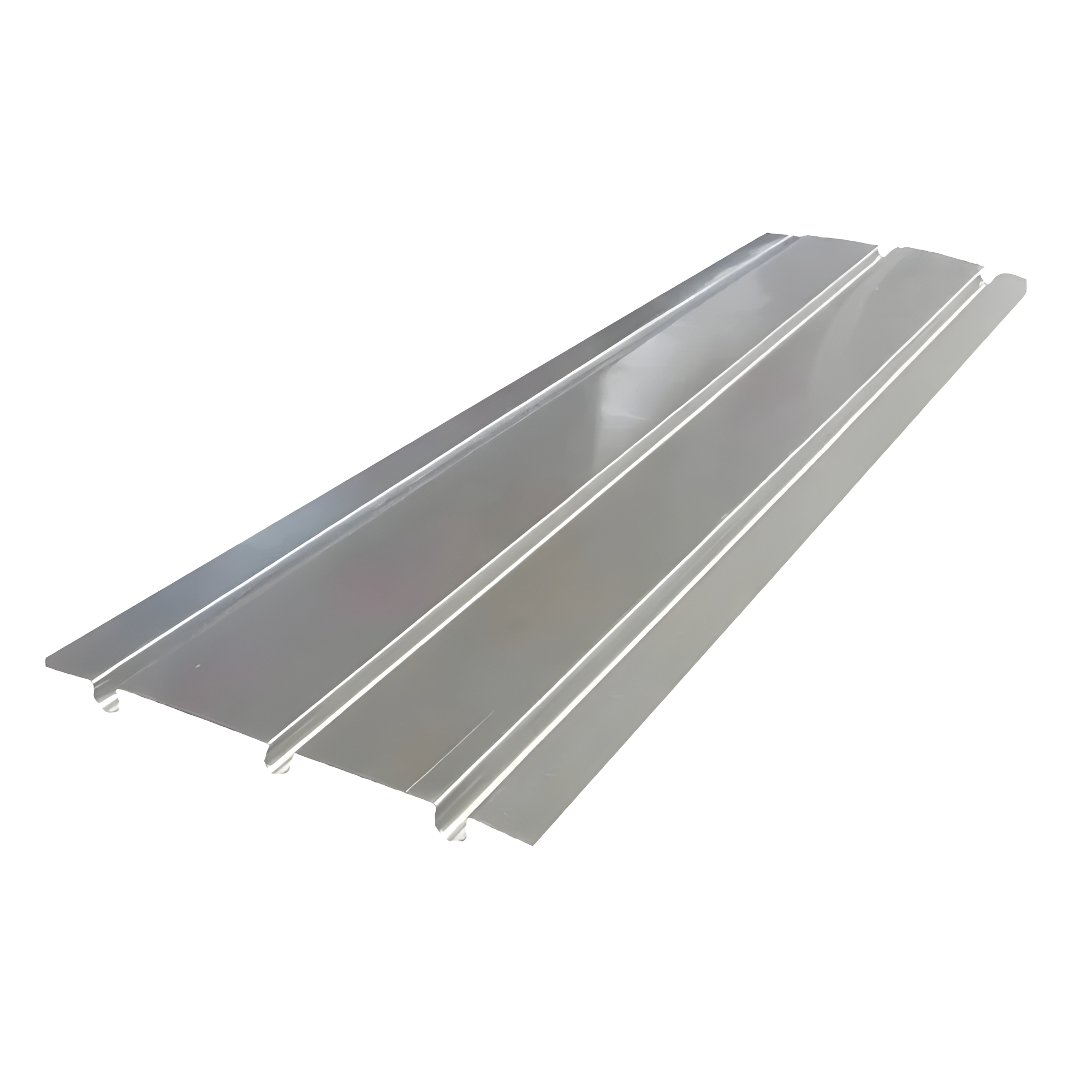

  • 390mmx1000mm - 133mm Centres

ProWarm™ Underfloor Heating Spreader Plate key features:

  • Easy Installation: The spreader plates are laid across traditional joists and can be fixed in place using a hand stapler. Enjoy a hassle-free installation process.
  • Optimal Heat Distribution: The high-grade aluminium construction of the spreader plates ensures an even spread of heat across the entire floor surface. Experience consistent and comfortable warmth in your living space.
  • Suitable for Wooden Joists: These spreader plates are specifically designed for wooden joists with 400mm centers. They provide excellent compatibility and performance in wooden floor constructions.
  • Lightweight Design: The spreader plates are lightweight, making them easy to handle and install. Save time and effort during the installation process.
  • Compatible with 15mm or 16mm Pipe: This product is designed to work seamlessly with 15mm or 16mm Pert-Al-Pert pipe. Choose the pipe size that suits your specific underfloor heating system.

Upgrade your underfloor heating system with ProWarm™ Aluminium Spreader Plate. Experience efficient heat distribution, quick installation, and the ultimate comfort in your living space.

Specifications

This high-grade aluminium plate is designed for use with 15mm or 16mm pipework.

Width 390mm
Length 1000mm
Depth 0.5mm
Weight 0.56kg
Groove spacings 133mm / 150mm / 200mm centres (Depends on option selected)
Total floor coverage per plate 0.39m2

Installation

  • As you begin, you will need to place the aluminium spreader plates away from the walls to allow room for the pipes to bend and return in the opposite direction. allow at least 250 mm for this.
  • Secure the spreader plates as you go using either staples, nails or screws. Whichever you use, be sure they are secured flush with the surface of the spreader plate.
  • When you place the second spreader plate, leave a 10 mm gap to allow for expansion.
  • Before securing this second spreader plate, insert a small length of pipe into the two spreader plates' meeting channels to ensure they align correctly.
  • Leave this in place whilst you secure the second spreader plate before removing. At no point allow the spreader plates to overlap as this will cause a noise when heating up and cooling down.
Size: 390mmx1000mm - 200mm Centres
