ProWarm™ Water Underfloor Heating High Output Kit
ProWarm™ Water Underfloor Heating Systems are the ultimate choice for homeowners and tradespeople seeking premium branded underfloor heating solutions. These systems combine quality, performance, and durability to deliver unmatched comfort and efficiency.
High Output Water Underfloor Heating Single Room Kits
Designed for areas with high heat loss, such as conservatories, our High Output Single Room Kits integrate seamlessly with standard radiator systems. These kits are tailored to specific square meterage with pipes spaced at 200mm intervals, providing an impressive output of 125W/m². For areas requiring a lower heat output, we also offer standard output kits to suit your needs.
Advanced Water Temperature Control
ProWarm™ kits feature advanced water temperature control, ensuring precision and safety. Unlike alternative systems, ProWarm™ uses only European Standard Pert-AL-Pert pipes. The aluminium layer acts as an oxygen barrier, preventing oxygen diffusion and safeguarding metal components from corrosion. This meticulous design ensures long-lasting reliability and efficiency.
Lifetime Warranty and WRAS Approval
We stand behind our products with a lifetime warranty, providing you with peace of mind and confidence in your investment. ProWarm™ Water Underfloor Heating Kits include WRAS-approved Pert-AL-Pert pipes, tested to meet the highest standards of quality and compliance with Water Fittings Regulations and Scottish Byelaws.

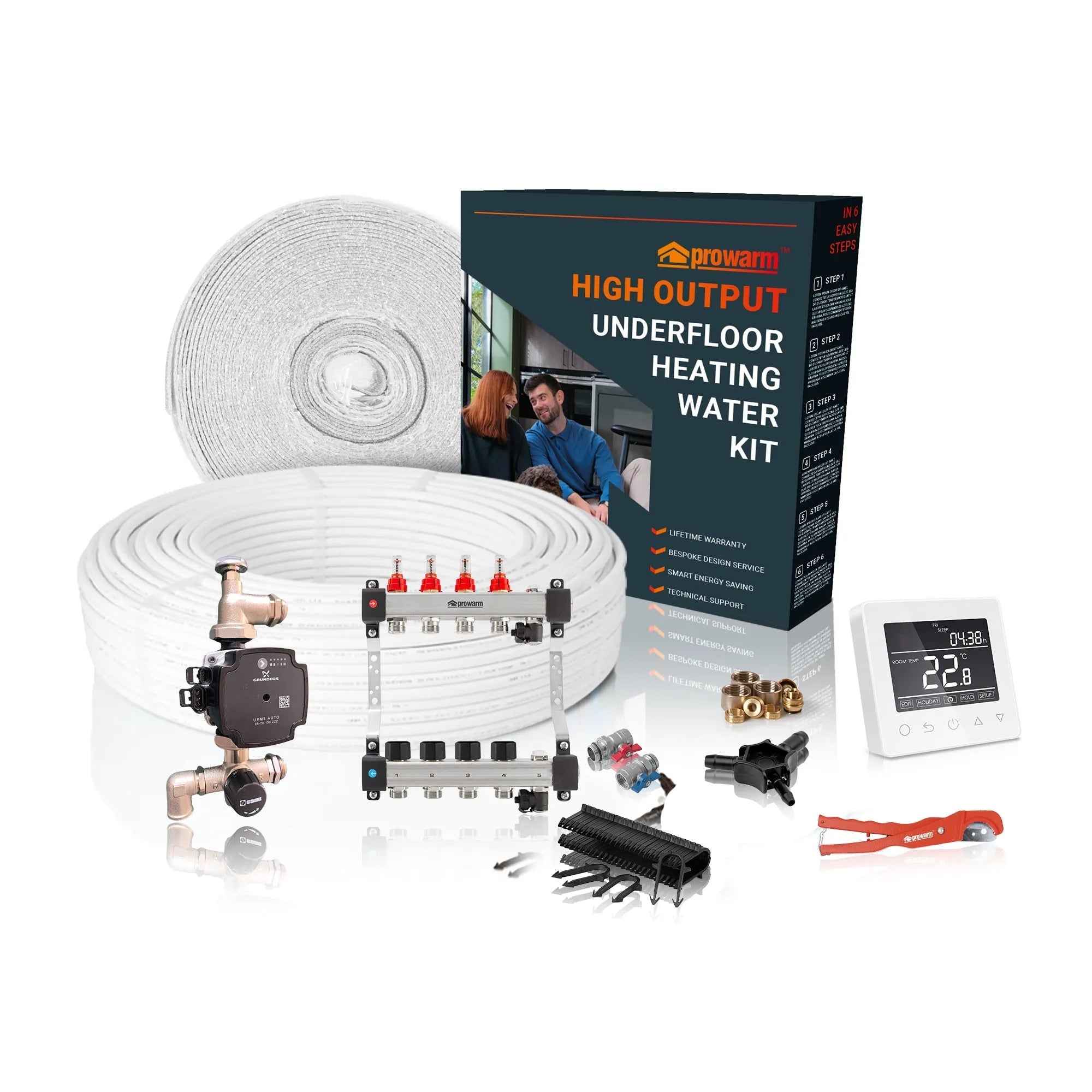

ProWarm™ Water Underfloor Heating Kit Components:
Below are examples of the products included in your ProWarm™ Water Underfloor Heating Kit. For a comprehensive list of what you'll find in the box, please refer to our handy Kit Content Comparison Table below.
- Grundfos Temperature Unit: A rated UPM3 Grundfos Single Circuit Constant Supply Temperature Unit.

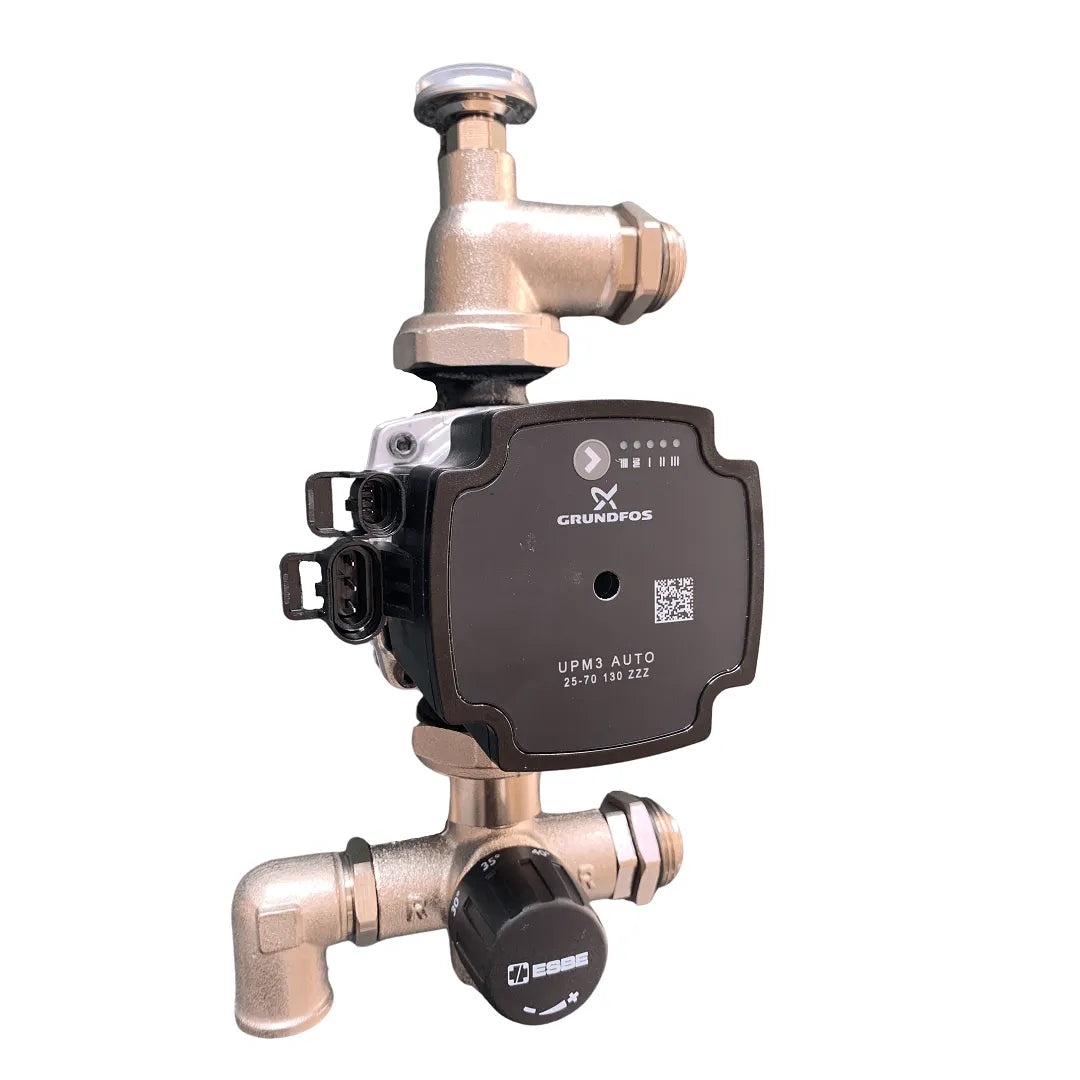

- Grundfos Mixing Unit: A rated UPM3 Grundfos Manifold Pump/Mixing Valve Unit.

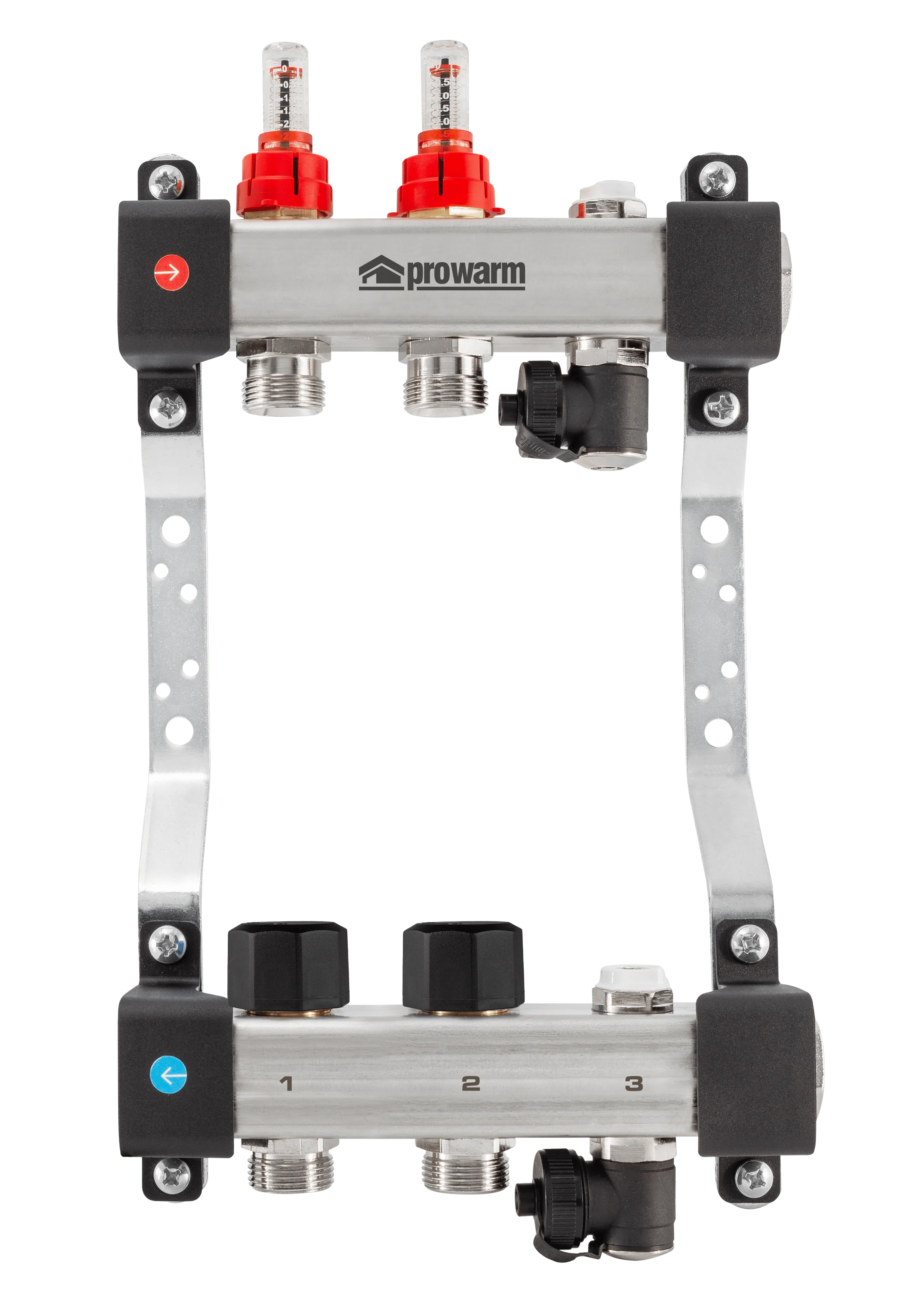

- 2, 3, or 4 Port Manifold: Stainless steel manifold with adjustable flow meter, factory assembled on fixing bracket.

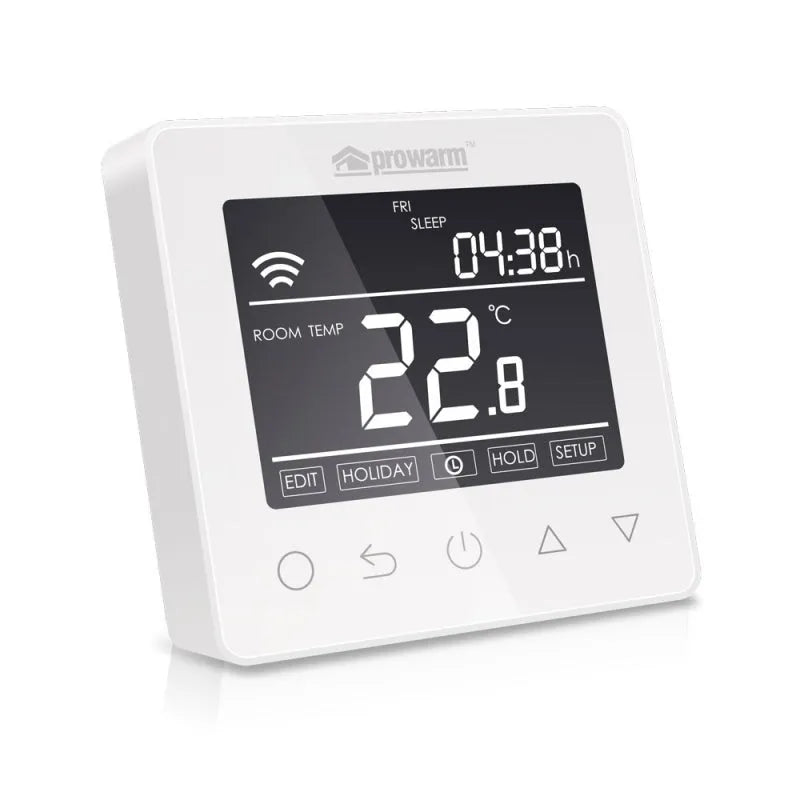

- Thermostat (depending if you've selected such option)

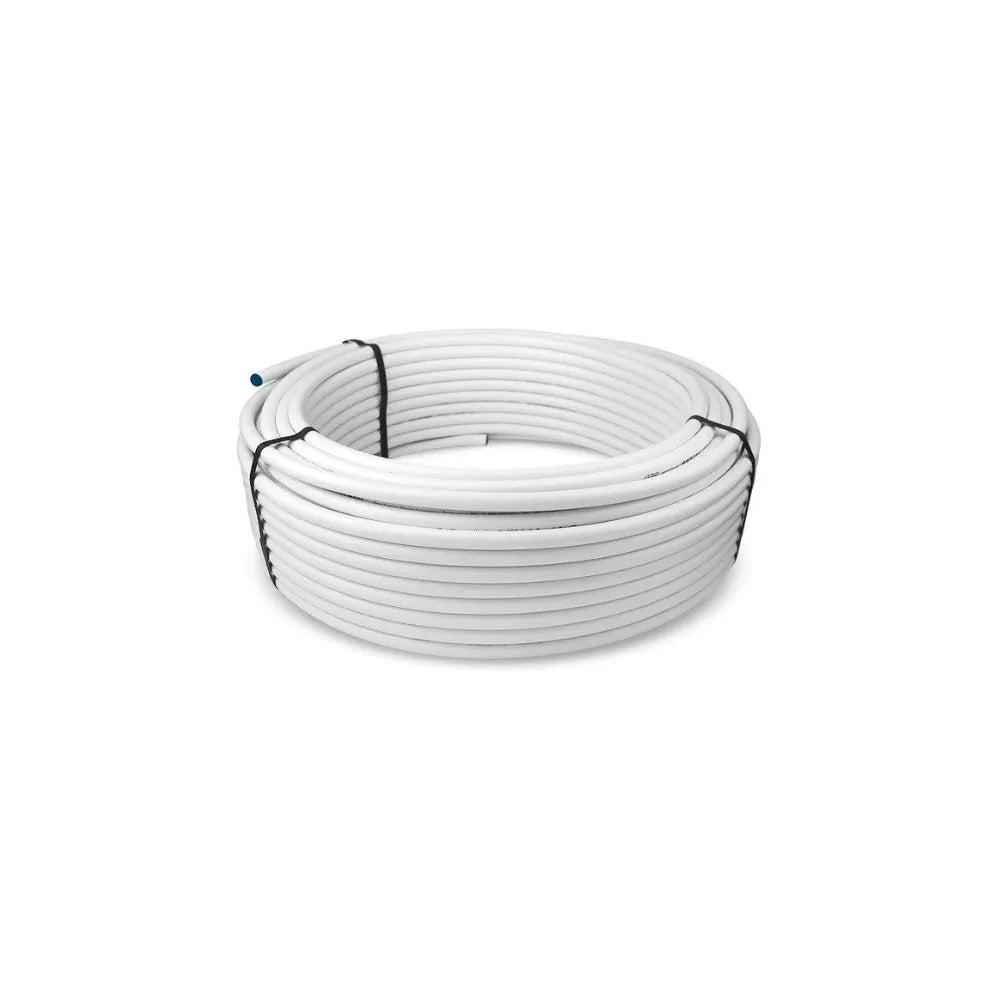

- ProWarm™ European Standard PERT-AL-PERT Pipe: 16mm (outside) diameter PERT-AL-PERT pipe.
- Tools: Pipe Re Rounding Tool, Pipe Staples, and Pipe Cutters for easy installation.

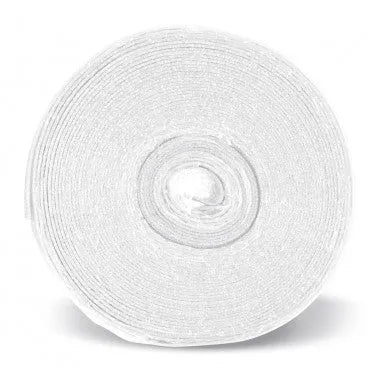

- Edging Insulation: Edge Insulation is included to minimize unwanted heat loss and allow for expansion, placed around the edge of the room.
Compare Kits
This table shows exactly what you'll get in the box based on your chosen kit size.
| Kit Size (m2) | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 30 | 40 | 50 | 60 | 70 | 80 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Circuit Pump | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | X | X | X | X | X | X |
| Manifold Pump + Mixer | X | X | X | X | X | X | X | X | Yes | Yes | Yes | Yes | Yes | Yes |
| Manual Thermostat | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Manifold Ports | X | X | X | X | X | X | X | X | 2 | 2 | 3 | 3 | 4 | 4 |
| Pipe Length (m) | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Edging Insulation | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Pipe re-rounding tool | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Pipe staples | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Pipe cutters | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Nuts and olives | X | X | X | X | X | X | X | X | Yes | Yes | Yes | Yes | Yes | Yes |
| Valves | X | X | X | X | X | X | X | X | Yes | Yes | Yes | Yes | Yes | Yes |
| Kit Size (m2) | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
|---|---|---|---|---|---|---|---|
| Temperature Unit | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Manifold Pump + Mixer | X | X | X | X | X | X | X |
| Manual Thermostat | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Manifold Ports | X | X | X | X | X | X | X |
| Pipe Length (m) | 50 | 60 | 70 | 80 | 90 | 100 | 110 |
| Edging Insulation | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Pipe re-rounding tool | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Pipe staples | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Pipe cutters | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Nuts and olives | X | X | X | X | X | X | X |
| Valves | X | X | X | X | X | X | X |
| Kit Size (m2) | 24 | 30 | 40 | 50 | 60 | 70 | 80 |
|---|---|---|---|---|---|---|---|
| Temperature Unit | Yes | X | X | X | X | X | X |
| Manifold Pump + Mixer | X | Yes | Yes | Yes | Yes | Yes | Yes |
| Manual Thermostat | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Manifold Ports | X | 2 | 2 | 3 | 3 | 4 | 4 |
| Pipe Length (m) | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Edging Insulation | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Pipe re-rounding tool | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Pipe staples | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Pipe cutters | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Nuts and olives | X | Yes | Yes | Yes | Yes | Yes | Yes |
| Valves | X | Yes | Yes | Yes | Yes | Yes | Yes |
Specifications
| Features | Values | Testing Methods |
|---|---|---|
| Material | Polyethylene of Raised Temperature PERT, Aluminium, Polyethylene of Raised Temperature PERT |
- |
| Colour | RAL white 9003 | - |
| Dimensions | 16 mm x 2mm | - |
| Application | Hot and cold potable water distribution, convector and radiator heating systems, radiant heating and air cooling systems, compressed air distribution systems, industrial installations. | - |
| Fittings | Pexal Brass, Bravopress and Pexal Twist | - |
| Minimum operating Temperature(1) | -60°C | - |
| Maximum temperature | +95°C/+100°C | EN ISO 21003-1 |
| Maximum Pressure | +10 bar | EN ISO 21003-1 |
| Density at 23°C | > 0.950 g/cm3 (crosslinked polyethylene) | - |
| Softening temperature | 135°C | - |
| Thermal expansion coefficient | 0.026 mm/m.K | - |
| Thermal conductivity | 0.42÷0.52 W/m.K | - |
| Internal roughness | 0.007 mm | - |
| Oxygen permeability | 0 mg/l | - |
| UV Resistance | Yes, if protected with UV-resistant paint | - |
| Halogen levels | Halogen-free | - |
(1) At any rate above the freezing temperature of the transported fluid.
The ProWarm™ Water Underfloor Heating Kit is WRAS approved. WRAS approval demonstrates it is of a suitable quality and standard against the Water Supply (Water Fittings) Regulations and Water Supply (Water Fittings) (Scotland) Byelaws, provided it is installed and used in accordance with the installation and requirement notes and any other restrictions within the approval. Any water fitting, which when installed, will carry or receive water from the public mains water supply in the UK, must comply with these regulations. They require that a water fitting should not cause waste, misuse, undue consumption or contamination of the water supply and must be ‘of an appropriate quality and standard’. To learn more about compliance, visit: WRAS approvals.
