ProWarm™ Water Underfloor Heating Standard Output Kit
ProWarm™ Water Underfloor Heating Systems are the perfect choice for homeowners and tradespeople looking to install a premium, branded water underfloor heating kit. Renowned for exceptional performance and reliability, these systems ensure efficient and comfortable heating for your home.
ProWarm™ Water Underfloor Heating Single Room Kits
ProWarm™ Single Room Kits are designed to integrate a single underfloor heating zone, such as a living room, with a standard radiator system. Each kit is tailored to cover a specific area (measured in square metres) based on a 250mm pipe spacing. This standard spacing provides an output of 115W/m², depending on the floor covering. For increased output requirements, high-output kits are available to meet your specific heating needs.
All kits include water temperature control for precise and efficient heating management. Beware of systems lacking this critical feature. ProWarm™ kits exclusively use high-quality, European Standard Pert-Al-Pert pipe. This pipe features an aluminium oxygen barrier layer, preventing oxygen diffusion through the polymer matrix and protecting metal components in the system from corrosion, ensuring long-lasting performance.
ProWarm™ Water Underfloor Heating Kits come with a lifetime warranty.
✅ The ProWarm™ Water Underfloor Heating Kit features WRAS-approved pipework, demonstrating compliance with the Water Fittings Regulations and Scottish Byelaws. This ensures the product meets the highest standards of quality and safety.

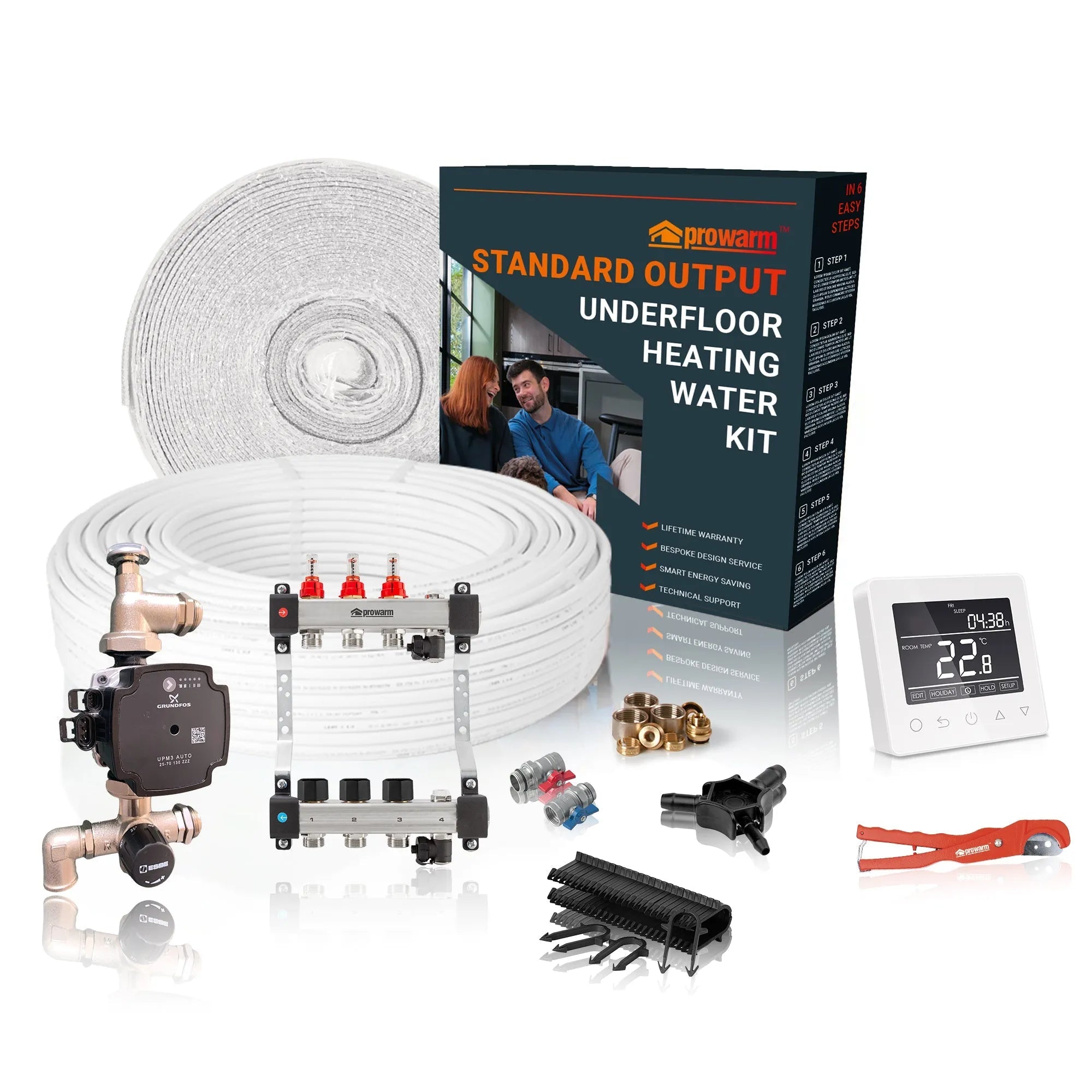

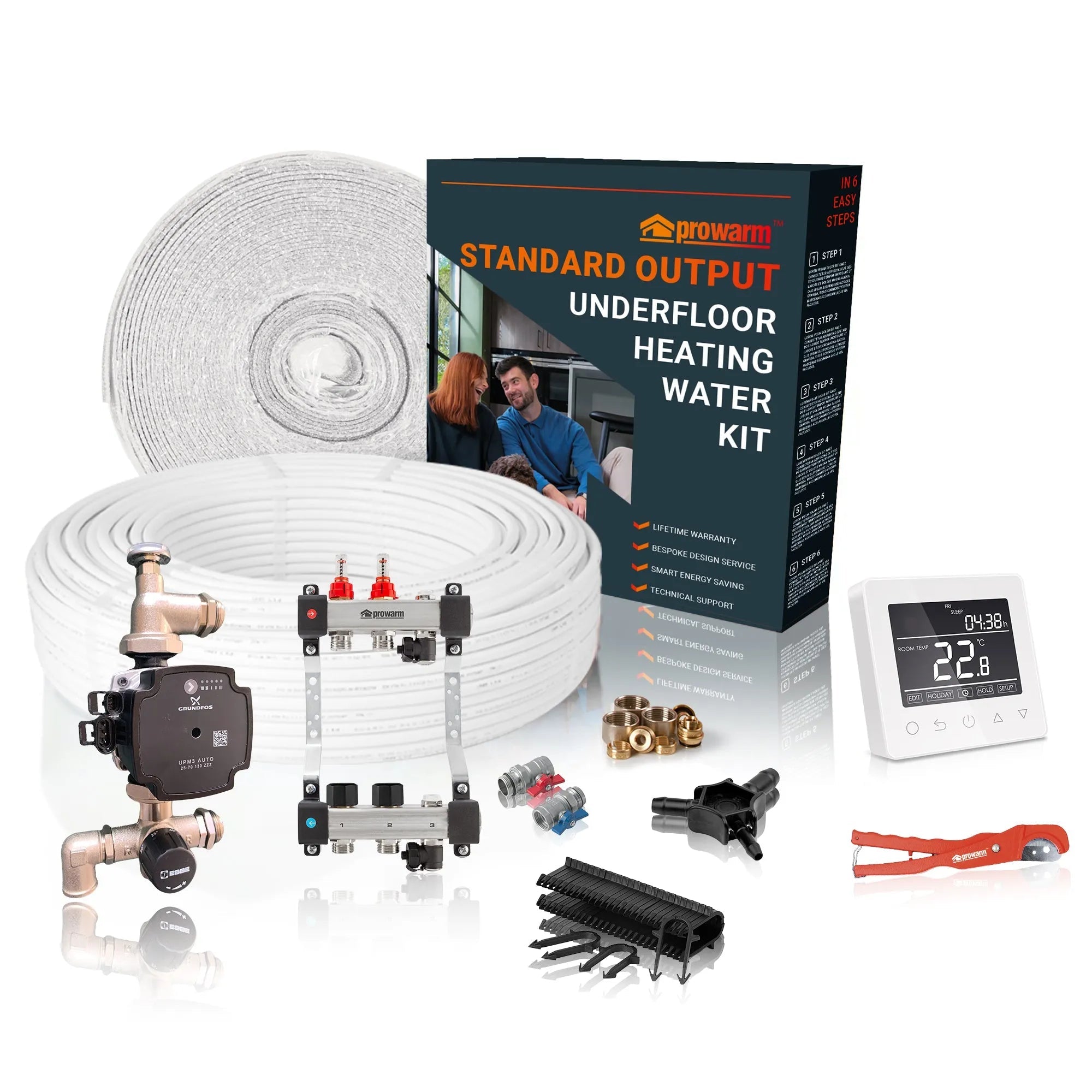

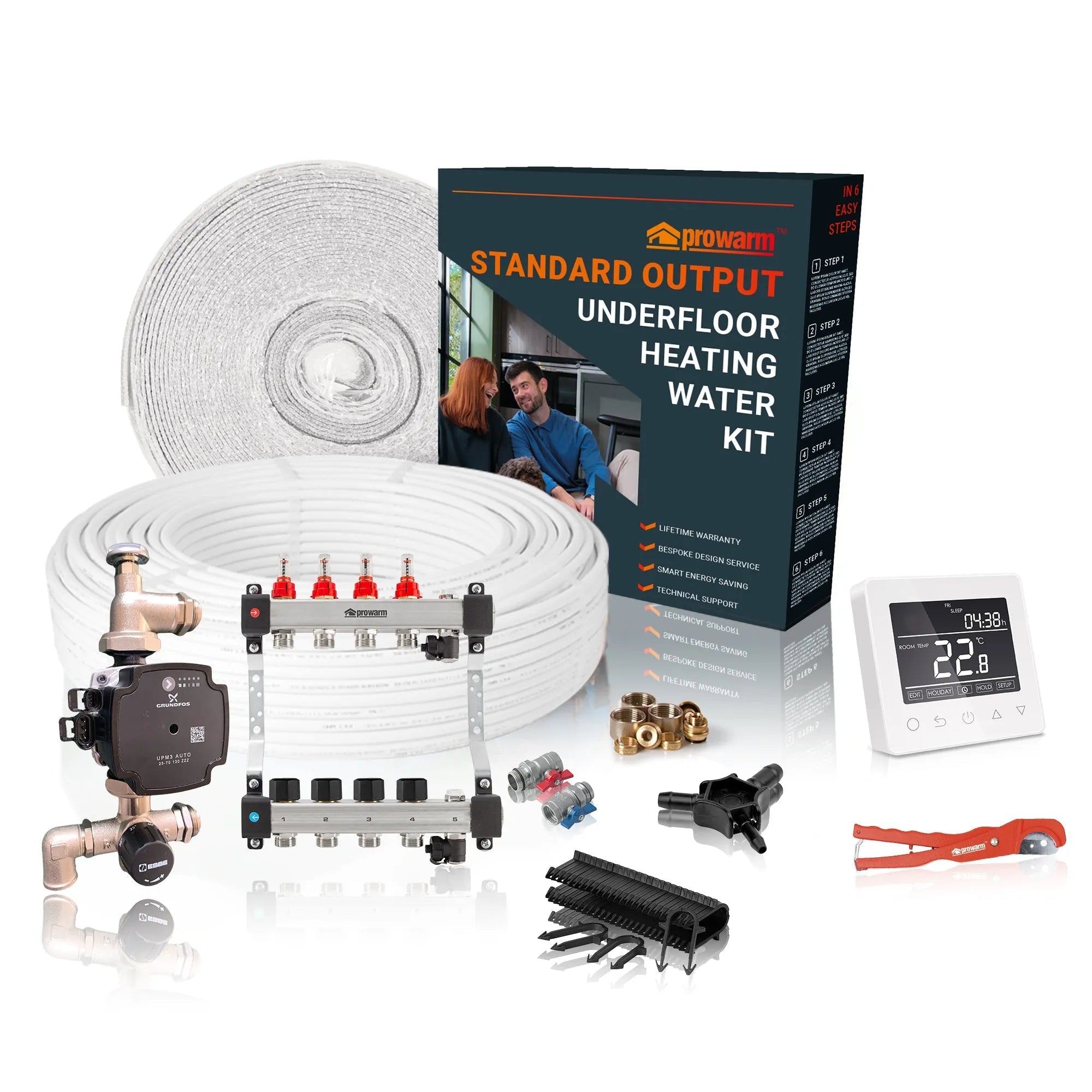

ProWarm™ Kit Components
Your ProWarm™ Water Underfloor Heating Kit includes carefully selected components. Below are examples of what might be included. Refer to our handy Kit Content Comparison Table for exact details:

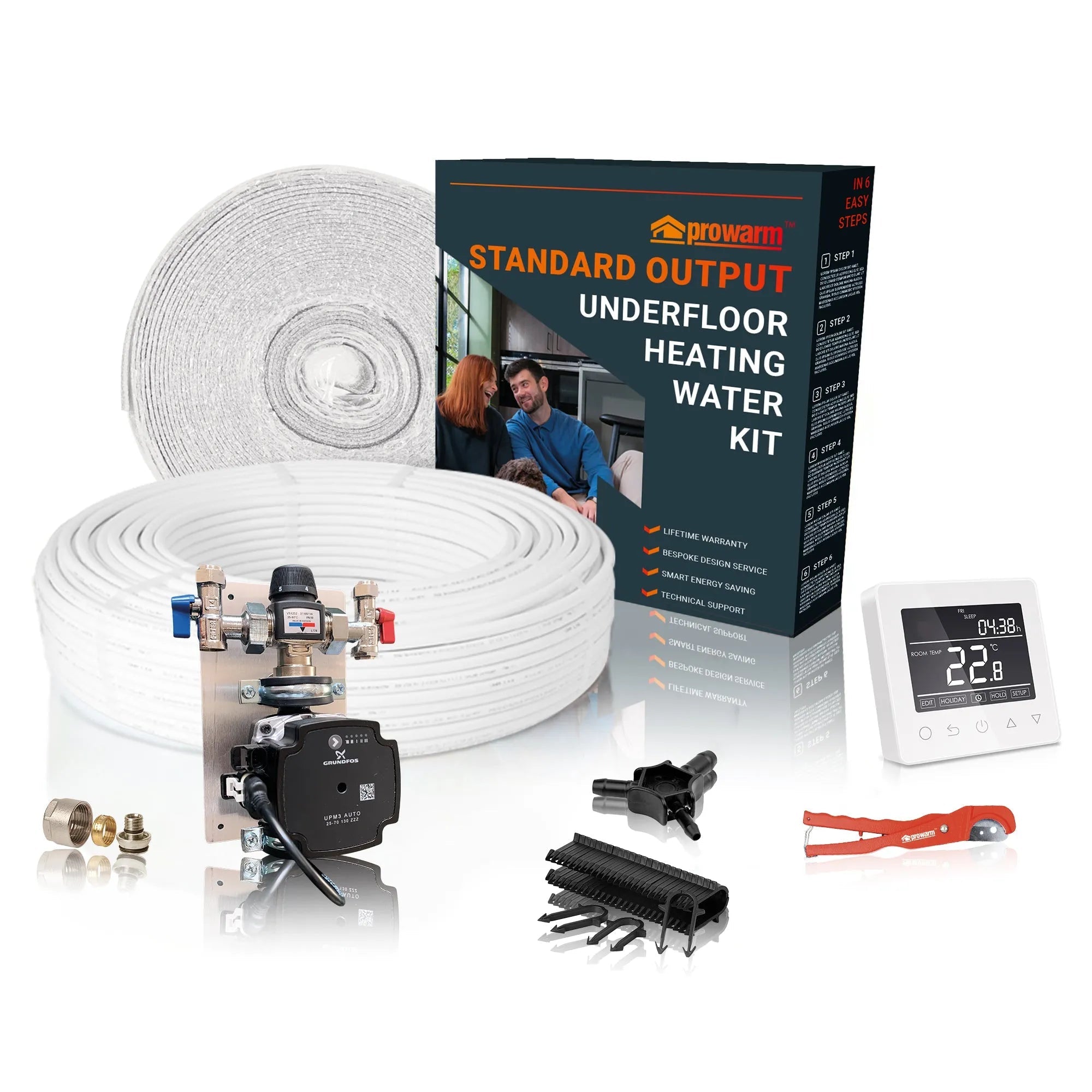

- Grundfos Temperature Unit: A-rated UPM3 Grundfos Single Circuit Constant Supply Temperature Unit (up to 30m²).

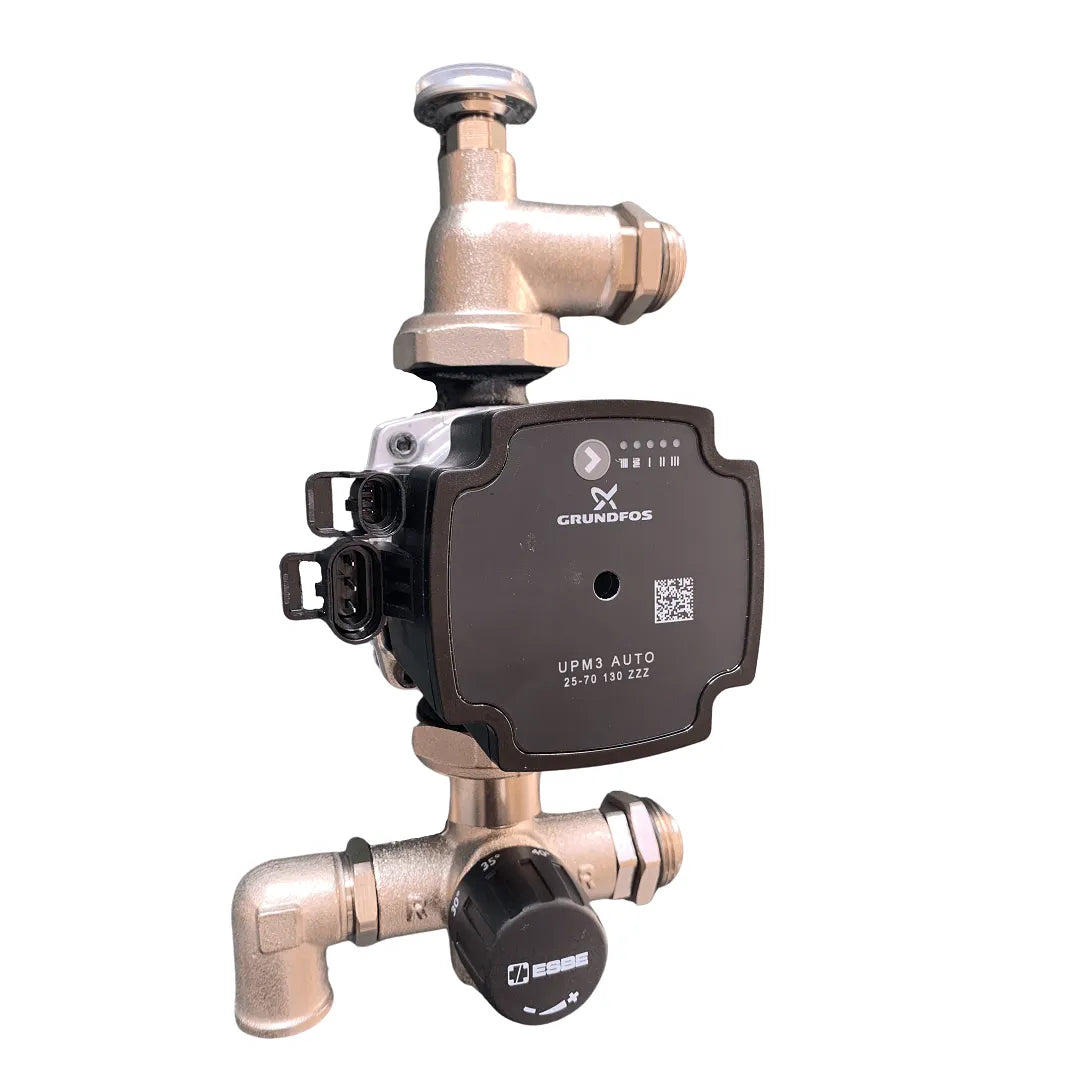

- Grundfos Mixing Unit: A-rated UPM3 Grundfos Manifold Pump/Mixing Valve Unit (37m²-100m²).

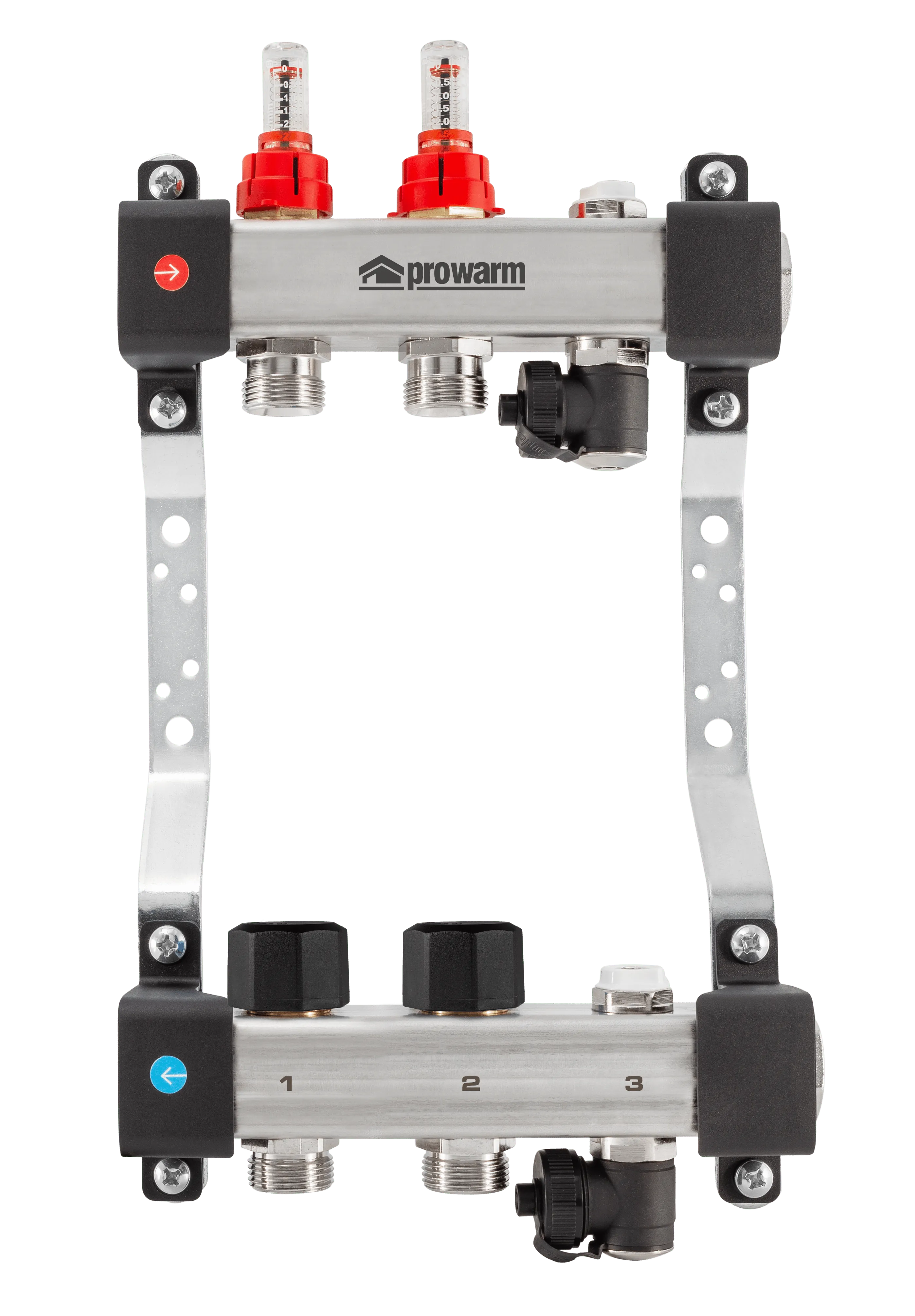

- Manifold: Stainless steel 2, 3, or 4-port manifold with adjustable flow meters, factory-assembled on a fixing bracket (37m²-100m²).

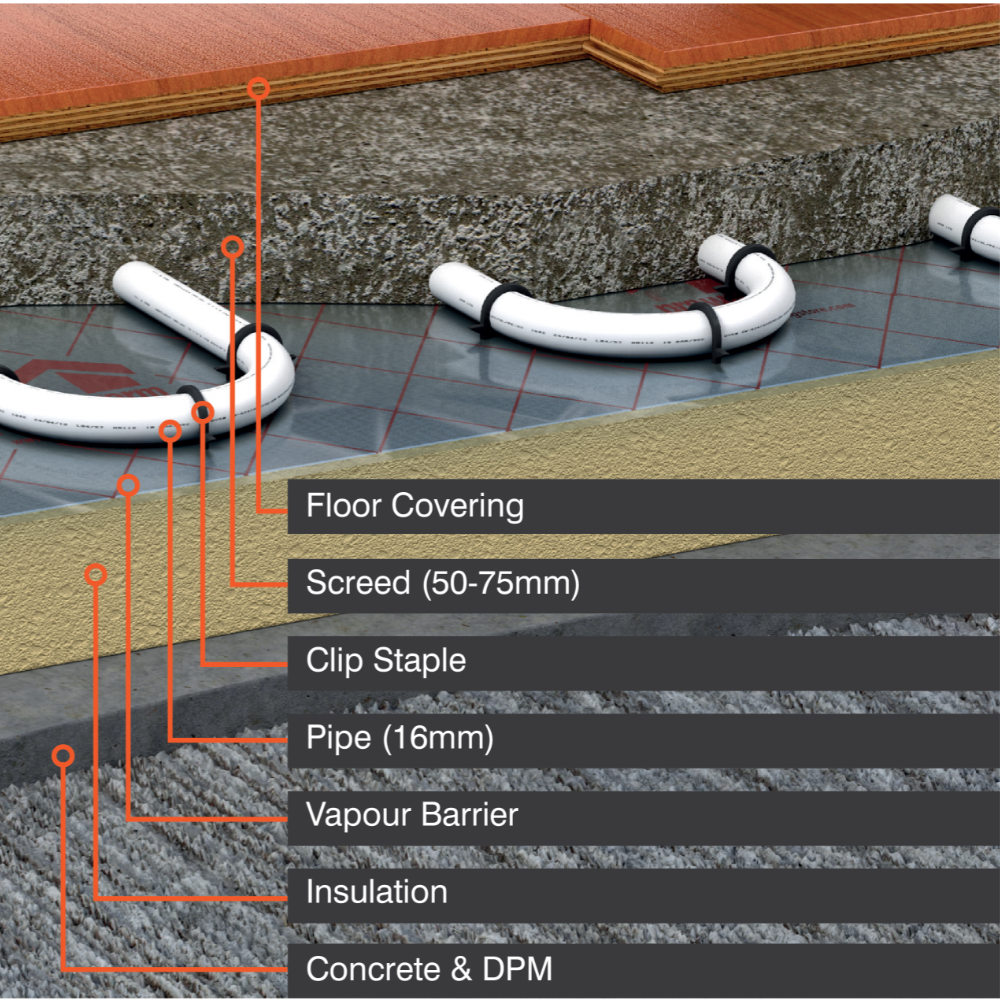

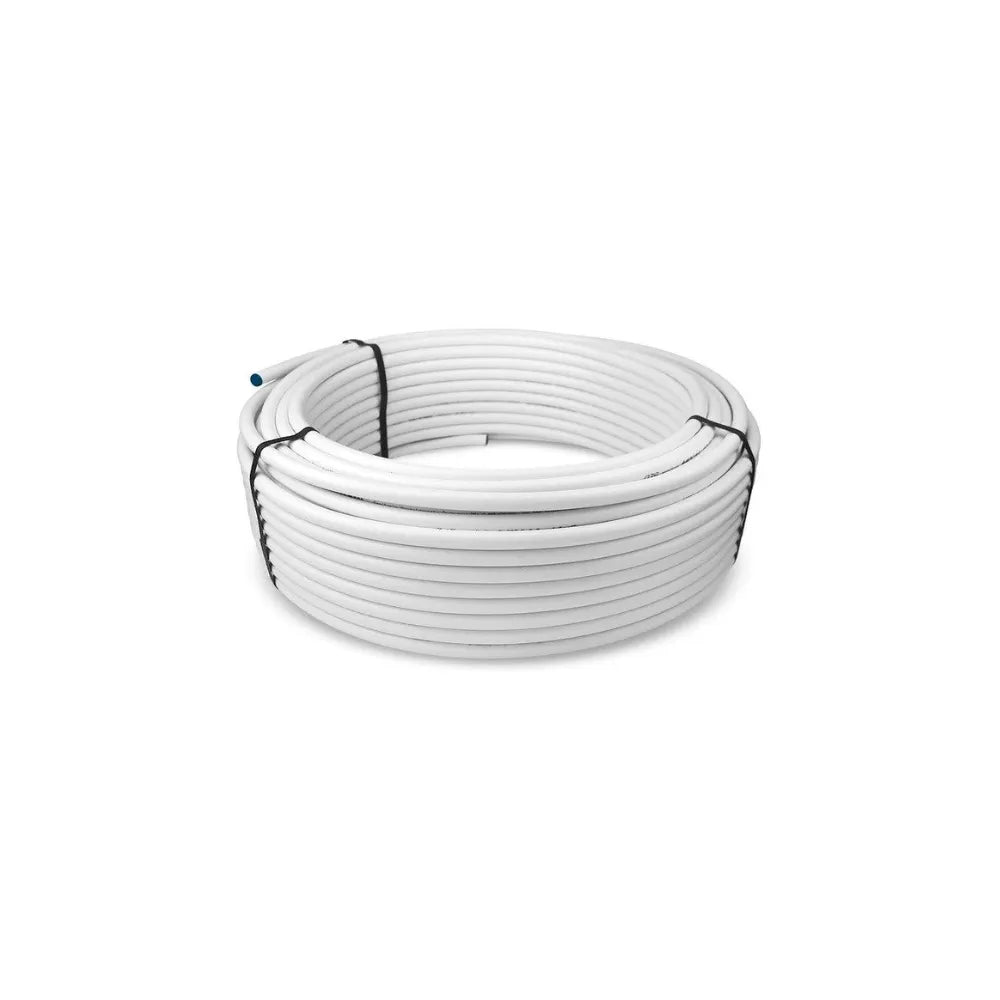

- ProWarm™ Pert-Al-Pert Pipe: High-quality 16mm diameter pipe offering exceptional durability and performance.

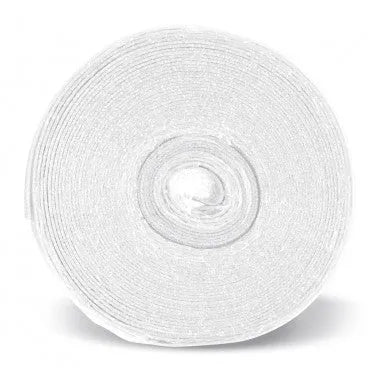

- Edging Insulation: Reduces heat loss around the room perimeter while allowing for thermal expansion.
- Tools: Includes a Pipe Re-Rounding Tool, Pipe Staples, and Pipe Cutters for a smooth installation process.

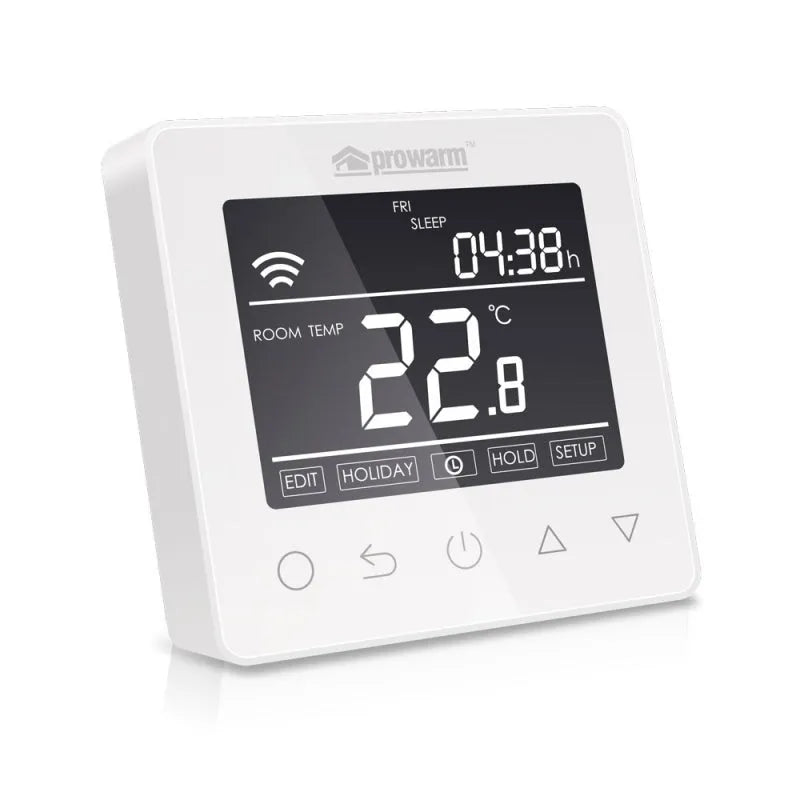

- Thermostat: Included if selected as an option.
Specifications
| Features | Values | Testing Methods |
|---|---|---|
| Material | Crosslinked polyethylene (PE-RT) with an aluminium oxygen barrier. | - |
| Colour | White | - |
| Dimensions | 14-32mm | - |
| Application | Hot and cold water distribution, radiant heating, air cooling, and industrial uses. | - |
| Minimum Operating Temperature1 | -60°C | - |
| Maximum Operating Temperature | 90°C | EN ISO 21003-1 |
| Maximum Pressure | 10 bar | EN ISO 21003-1 |
| Thermal Conductivity | 0.43 W/m.K | - |
| Oxygen Permeability | 0 mg/l | - |
| UV Resistance | Yes (if protected with UV-resistant paint) | - |
| Halogen Levels | Halogen-free | - |
(1) At temperatures above the freezing point of the fluid being transported.
WRAS Approval
The ProWarm™ Water Underfloor Heating Kit is WRAS-approved, signifying compliance with the UK Water Fittings Regulations and Scottish Byelaws. These regulations ensure fittings do not cause waste, misuse, contamination, or undue water consumption. For more information, visit WRAS Approvals.
